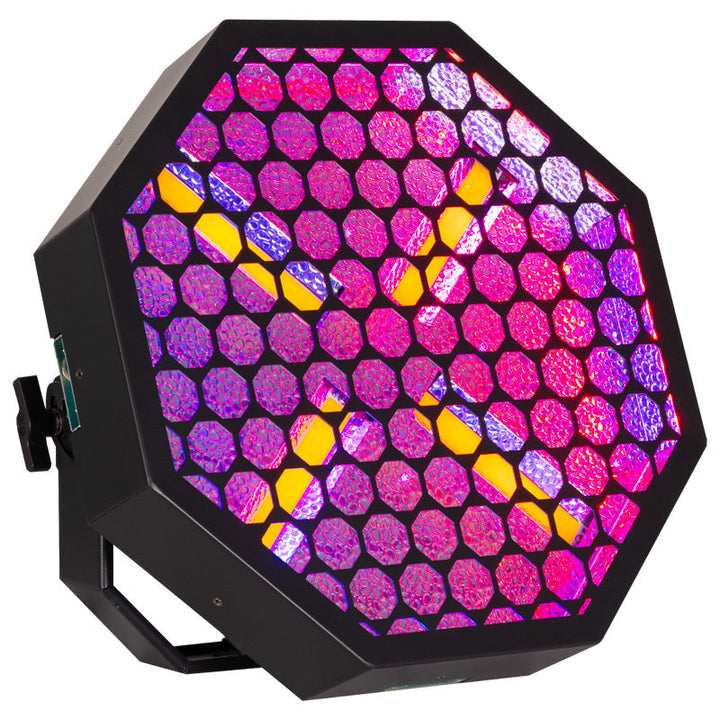

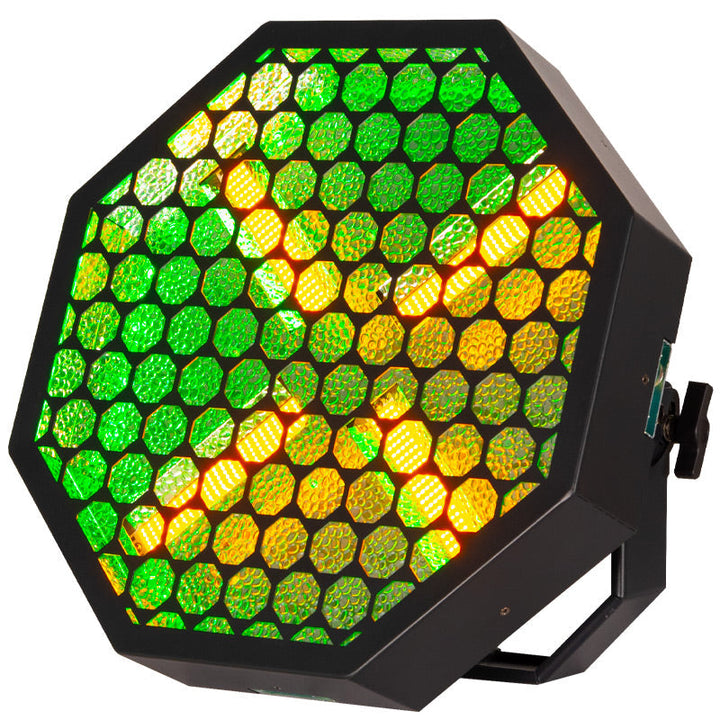

Blinder/Strobe Fixture - IP20 w/4 x 60W A LED / 64 x 3W RGB

Vintage X

Vintage X is a highly adaptable scenic lighting fixture that sparks creativity and captures attention with its dual-purpose design. Featuring four 60-watt foreground amber LEDs (2000K), it produces the warm glow of a retro blinder effect, while 64 vibrant 3-watt RGB LEDs deliver rich, dynamic color tones and stunning background effects. This combination allows for smooth dimming transitions and bold, captivating lighting displays in an intriguing octagon shaped fixture.

With its wide 150-degree field angle, the Vintage X is perfect for stage productions, live events, and theatrical applications. Additional features include advanced strobing effects, retro background lighting, and silent operation, while its flicker-free performance guarantees smooth visuals. The fixture also boasts a user-friendly OLED display and compatibility with DMX, RDM, Bluetooth, and Aria X2 wireless management system for over the air firmware/software updates for streamline control.

Designed for flexibility, the Vintage X supports multiple control modes, and a coffin locking system to interlock up to eight fixtures together, making it ideal for immersive lighting environments. Combining classic vintage aesthetics with cutting-edge technology, it offers both creative versatility and reliable performance for modern lighting designs.

Specifications

• Features:
• 4 Foreground Amber LEDs
• 64 Background RGB LEDs
• All LED's are Individually Controllable via DMX
• Built-In Foreground LED Programs
• Built-In Background LED Programs
• Variable White Color Temperature Control (2,700K ~ 10,000K) (RGB LEDs)
• User Selectable LED Refresh Rates (900Hz ~ 25K)
• 6 User Selectable Dim Modes
• 4 User Selectable Dim Curves
• Electronic Strobe (0.1Hz ~ 20Hz)
• Electronic Dimming
• Source:
• (4) 60W, 2000K, Amber Foreground LEDs
• (64) 3W RGB Background LEDs
• 50,000 Hour Average Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Optical:
• Amber: 2000K (+/- 50K)
• RGB: 2,700K ~ 10,000K White Color Temperature Range
• Output: 220 Lux, 7000 to 8000 Lumens
• 140° Beam Angle
• 150° Field Angle
• Physical:
• IP20, Metal Housing
• Safety Eyelet
• Digital Display
• Coffin Lock System to Interlock up to 8 Vintage X units

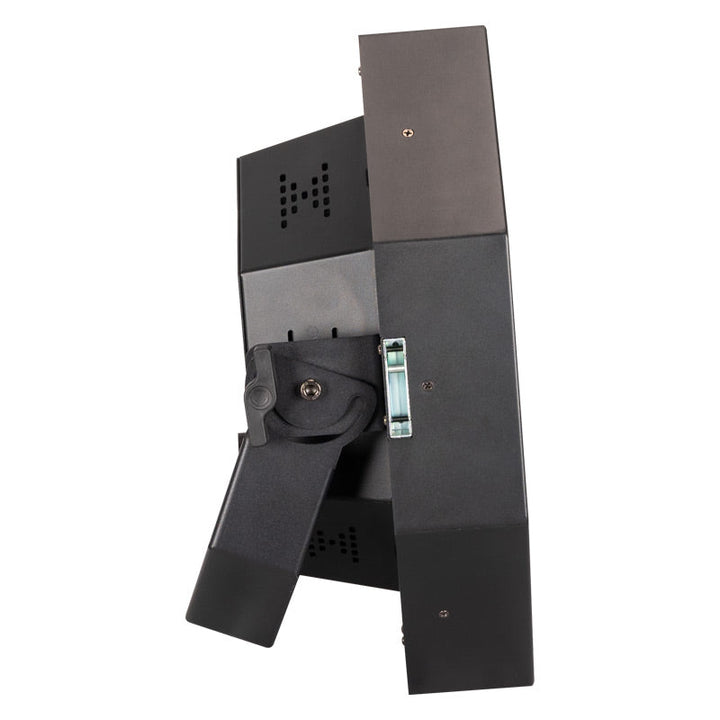

• Adjustable Hanging Bracket
• Omega Clamp Receivers (Omega Clamp Sold Separately
• Control:
• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• (10) DMX Channel Modes (10, 16, 25, 42, 47, 196, 203, 210, 214, and 218 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode

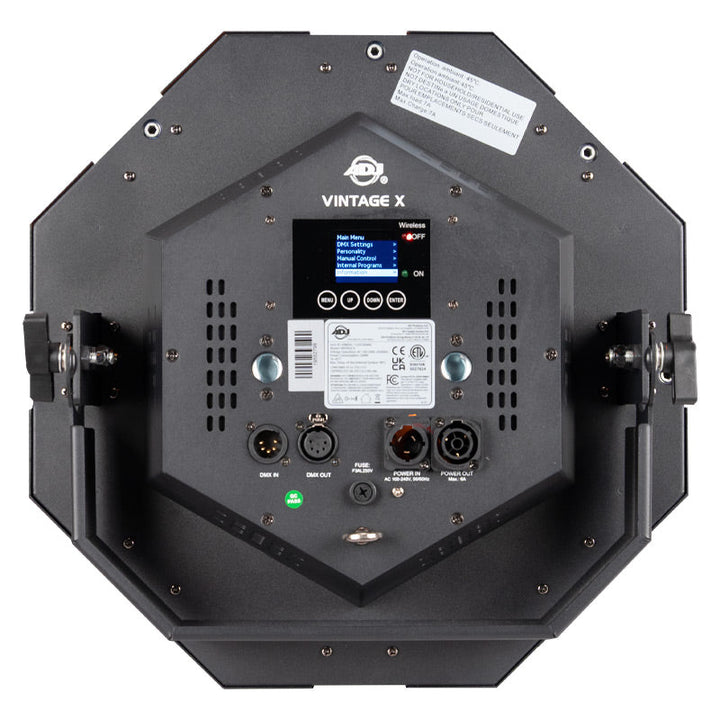

• Connections:
• 5-pin XLR DMX In/Out Sockets
• IP65 Locking Power In & Thru Sockets
• Dimensions & Weight:
• Length: 15.7" (398mm) Width: 11.0" (280mm) Height: 15.7" (398mm)
• Weight: 20 lbs. (9.1 kg)
• Power:
• AC100-240V/50Hz-60Hz Input
• 200W Power Consumption
• Link 2 pieces @120VAC or 4 pieces @ 230VAC
• Thermal:
• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications & IP Rating:
• CE
• cETLus (Control # 5027824)
• FCC
• IP20
• Included Accessories:
• (1) IP65 Locking Power Cable
• Optional Accessories:
• Omega Clamp (107mm)
• Specifications and documentation subject to change without notice.
