Description

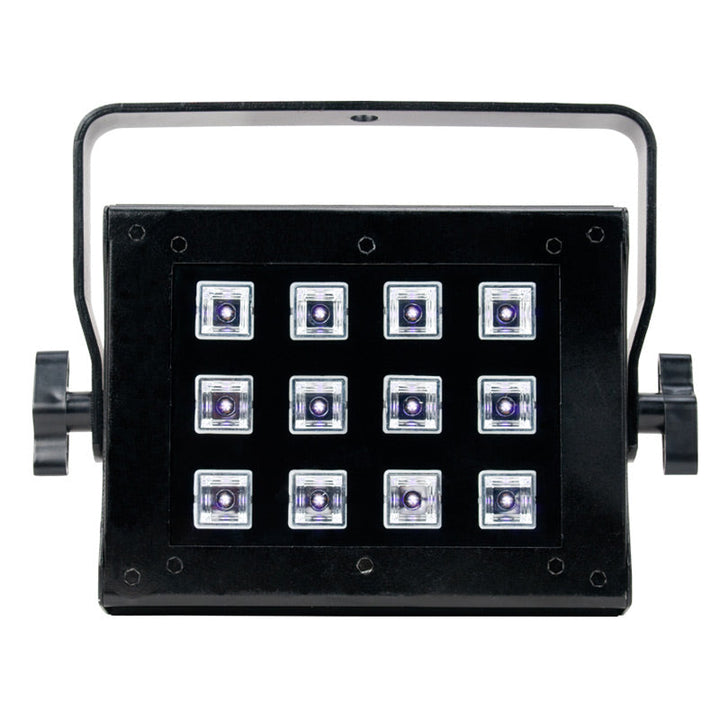

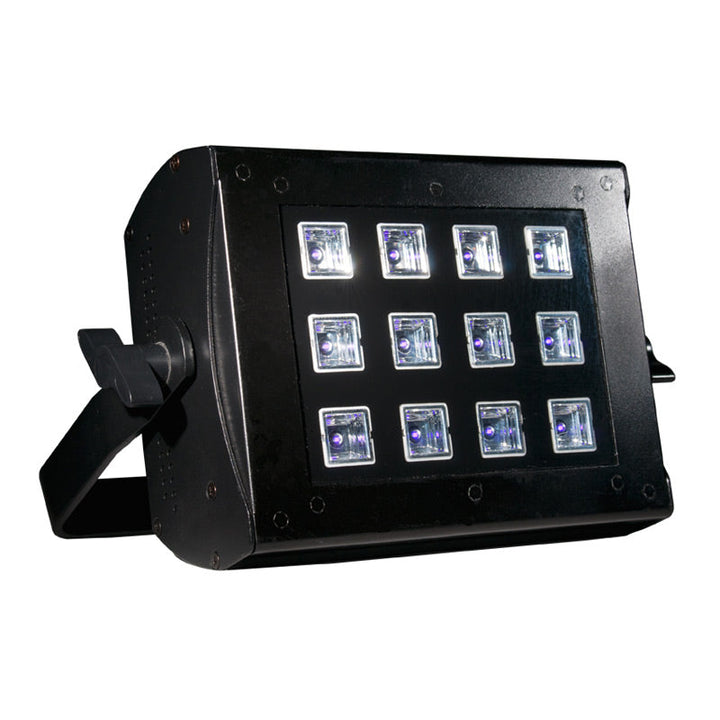

UV Flood 36
The ADJ UV Flood 36 delivers bold blacklight effects with wide, even coverage in a compact and lightweight design that’s easy to deploy anywhere vibrant UV impact is required. Ideal for stages, nightclubs, fun centers, bowling alleys, haunted attractions, and special events.
At the heart of the fixture are 12 x 3W UV LEDs rated for approximately 50,000 hours of use. Emitting in the optimal 395–400nm wavelength range, the UV Flood 36 produces rich, consistent ultraviolet output that brings fluorescent materials to life. Its generous 87-degree beam angle ensures broad wall washing and smooth coverage across stage backdrops, performance areas, and large installations, eliminating hot spots while maximizing visual impact.
Designed for flexibility, the UV Flood 36 offers multiple control options to suit both simple setups and fully programmed lighting rigs. In Sound Active Mode, the fixture reacts to music for dynamic, beat-driven effects that enhance high-energy environments. Dimmer Mode provides straightforward standalone operation with manual intensity control, while DMX control unlocks professional-level performance with selectable 1, 2, or 3-channel modes. Equipped with 3-pin DMX In/Out connections and reliable wired digital communication, it integrates seamlessly into existing DMX systems for synchronized, show-ready control.
Electronic 0–100% dimming allows for smooth fades and precise intensity adjustments, making it easy to create anything from subtle ambient glow to full-intensity blacklight blasts. The built-in strobe effect adds another layer of creativity, with an adjustable strobe rate that ranges from subtle pulsing to high-impact flashes for dramatic moments.
Installation is quick and efficient thanks to IEC AC In/Out power connections, which allow for convenient daisy chaining. With low 35W power consumption, multiple fixtures can be linked together—up to 26 units at 120V or 57 units at 240V—making the UV Flood 36 an energy-efficient choice for large-scale installations and touring applications. A 4-button display menu help to easily navigate through the fixtures features and controls.
Measuring just 11.75” x 9.25” x 4.5” and weighing only 5 lbs. (2.2 kg), the UV Flood 36 is easy to transport, mount, and position wherever intense UV wash is needed. For added convenience, it is compatible with the Dotz Par RF remote (sold separately), offering wireless control options that further simplify operation.
Compact, reliable, and designed for maximum glow, the ADJ UV Flood 36 is a versatile blacklight solution that delivers bold ultraviolet performance wherever you need it most.
Specifications
- • 12 x 3W UV LEDs (Rated at approximately 50,000 hours)
- • 3 Operational Modes: Sound Active, Dimmer Mode, and DMX Controlled
- • Beam Angle: 87-degrees
- • Fuse: 1Amp
- • Wavelength: 395-400nm
- • 3 DMX Modes: 1/2/3

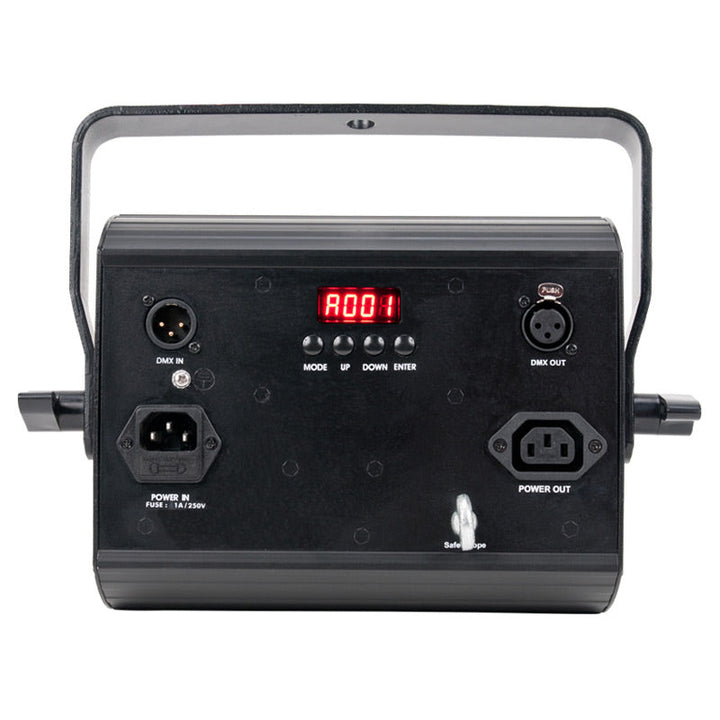

- • 3-Pin DMX In / Out DMX Connections
• With Wired Digital Communication Network - • Electronic Dimming 0-100%
- • Strobe Effect
- • Strobe Rate: Adjustable
- • Sound Active: Yes
- • Compatible with the Dotz Par RF remote (sold separately)
- • Power Connection:IEC AC In/Out
- • Input Voltage: AC 100V-240V 50/60Hz
- • Power Consumption: 35W (Full on)
- • Power Link: 26 @ 120V / 57 @ 240V
- • Dimensions (LxWxH): 11.75” x 9.25” x 4.5” / 300 x 235 x 115mm
- • Weight: 5 lbs. / 2.2 kgs
