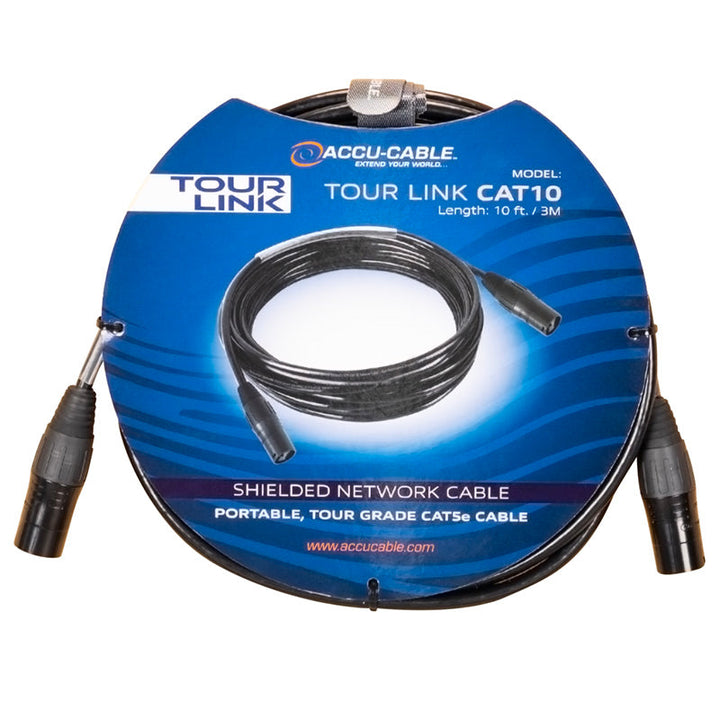

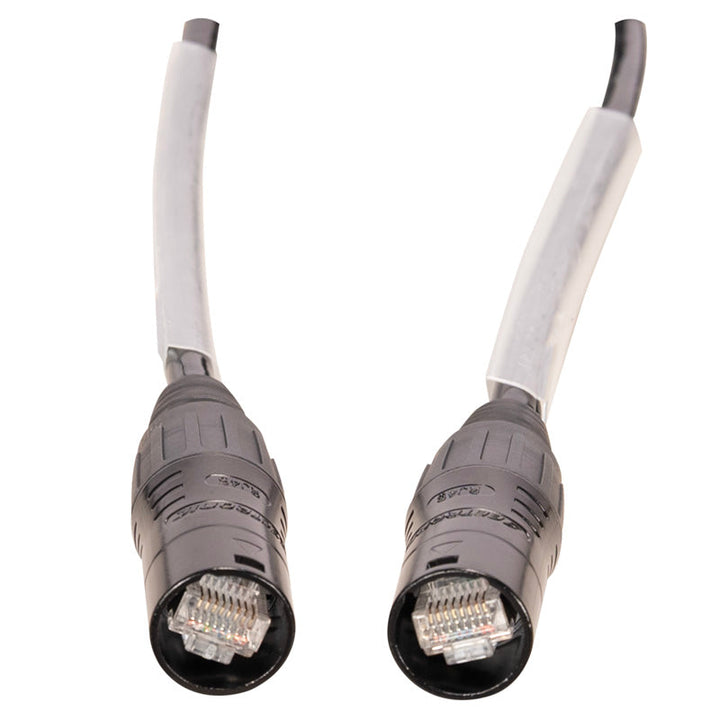

Cat5E Shielded Network Cable ' 10ft

TOUR LINK CAT10

Accu-Cable TOUR LINK SERIES Cat5e Shielded Network Cable is a premium 24-gauge, 4-pair twisted pair cable built for high-performance networking in demanding environments. Engineered with durability and superior shielding, it ensures reliable data transmission with enhanced protection against interference.

Supporting speeds up to 1 Gbps over 100 meters, this Cat5e cable delivers 10× the performance of standard Cat5 while minimizing crosstalk and signal loss. It’s an ideal solution for lighting control (Art-Net, sACN), digital audio (Dante, AVB), video networking, and professional AV setups.

Designed for live events, touring, installations, and industrial applications, the TOUR LINK Cat5e offers the perfect balance of performance, efficiency, and dependability — making it the trusted choice of event professionals worldwide.

Specifications

Product Structure Characteristics Product Specification:

• • Conductor Specification: 4×2×0.22 mm² / 24 AWG

  • Conductor Structure: OFC 7/0.20BC (Oxygen-Free Copper)

  • Insulation Material: FPE (Foamed Polyethylene)

  • Insulation Color Outer Diameter:

• BU / BU-WH (Blue / Blue-White)
• OG / OG-WH (Orange / Orange-White)
• GN / GN-WH (Green / Green-White)
• BN / BN-WH (Brown / Brown-White)
• Insulation Outer Diameter**: 1.00 mm
• • Shield Structure: 16/10/0.10TC (Tinned Copper) with 92% coverage

  • Outer Jacket Material: TPU (Thermoplastic Polyurethane)

  • Outer Jacket Color: Black (BK)

  • Outer Diameter: 6.6 ± 0.4 mm

  • Cable Printing: TOUR LINK 4X2X0.22mm (24 AWG) STP CAT.SE Network Cable - High Performance Shielded Cable - RoHS Compliant


Electrical and Mechanical Characteristics

• • Withstand Voltage: 0.5 kV

  • Conductor Resistance (max. at 20°C): 93.8 Ω/km

  • Capacitance between Conductors: 60 pF/m

  • Impedance: 100 Ω

  • Temperature Range: -20°C to +60°C


Specifications are subject to change without notice.
