24-Channel DMX Controller

SDC24

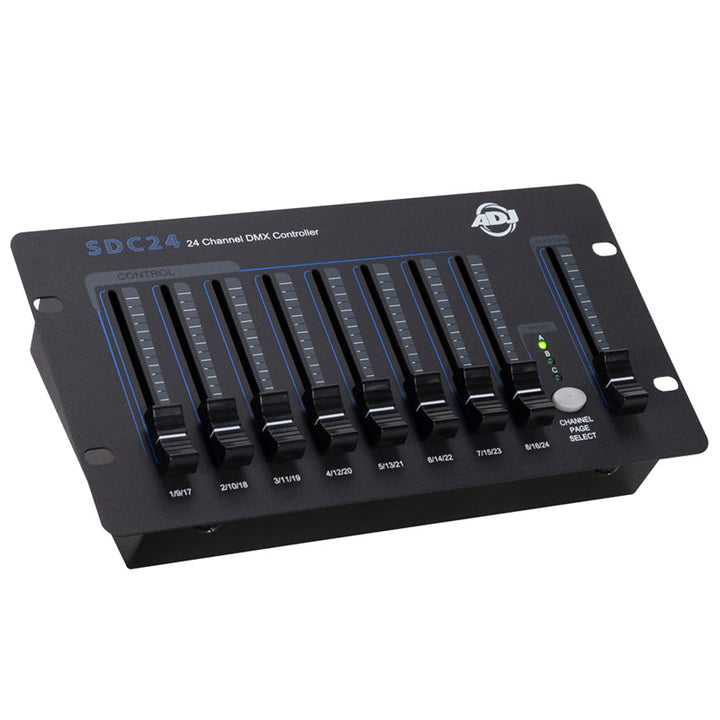

AVAILABLE NOW FROM ADJ USA The ADJ Lighting SDC24 is a basic 24-channel DMX Controller that operates via an external 12VDC power supply (included) or a 9VDC battery (not included). SDC24 has 5-pin and 3-pin DMX output sockets, DIP switches to set a starting DMX channel, a master dimmer fader, an on/off switch and Channel Page button with Indicator LEDs.

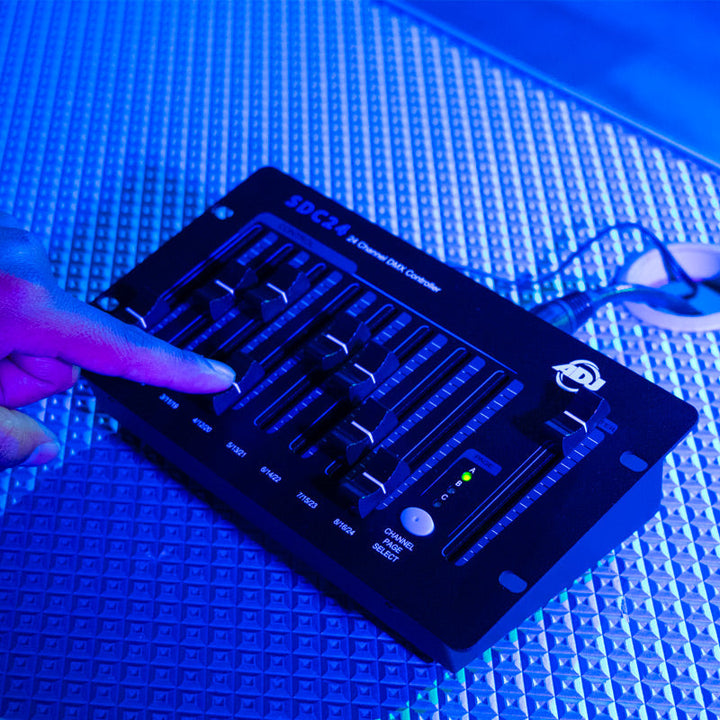

This a great compact controller for product demos or manual control of LED or conventional fixtures. Its compact and easy to use design makes it a great control solution for small stages at live events, venues, churches, theaters, bars and lounges.

Specifications

Features:

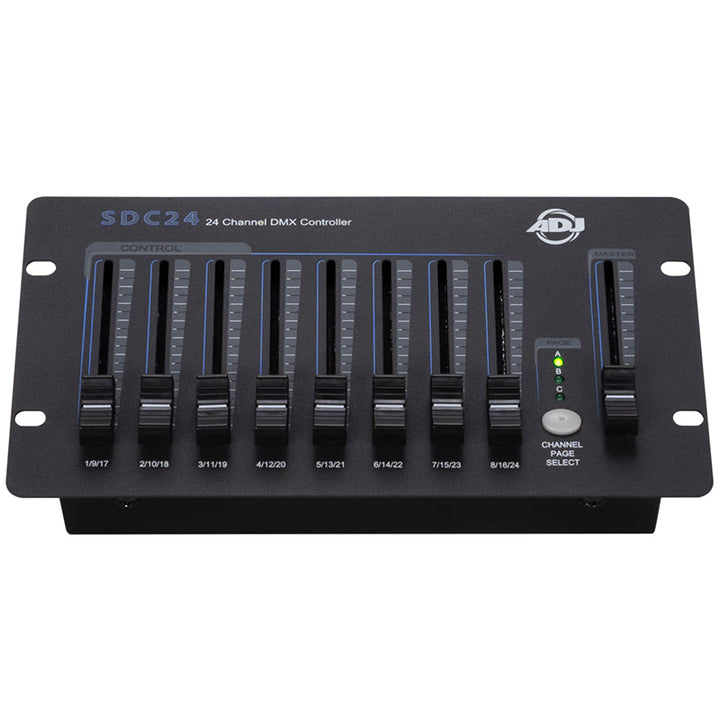

• • 8 individual channel faders and 1 master fader

  • 24 DMX channels

  • Compact, portable design

  • 3-Pin and 5-Pin XLR output

  • Battery Type: PP3 9V (not included)

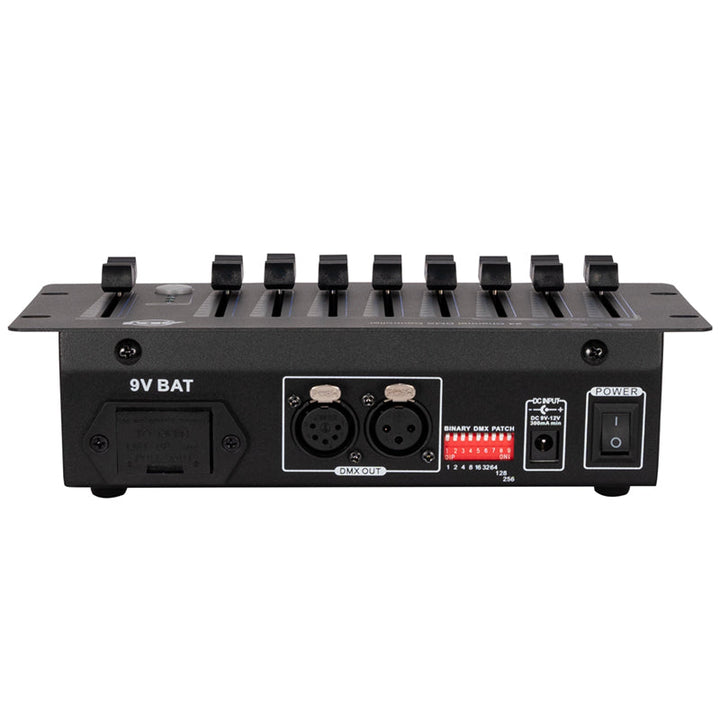

• Control / Connection:

• • DIP Switches To Set Starting DMX Channel

  • 3pin 5pin DMX Outputs

  • On/Off Switch

  • Channel Page button with Indicator LED's
  • DC9V-12V Power Supply Input
  • 9V Battery slot


Size / Weight:

• • Length: 4.73” (120mm)

  • Width: 9.06” (230mm)

  • Height: 2.23” (56.66mm)

  • Weight: 1.86 lbs. (0.84kg)


Electrical:

• • DC9V-12V 300mA min or 9V Battery (Not Included)

  • Power Consumption: DC9V 40mA 0.36W, DC12V 40mA 0.48W


Approvals / Ratings:

• • CE Approved

  • cETLus (Control # 5014475)
  • IP20

Included Accessories:

• 9V 1A Power Supply with plug adapters

Specifications subject to change without notice.
