Pinspot with 5.7° Beam & 20W RGBL LED

Saber Spot RGBL

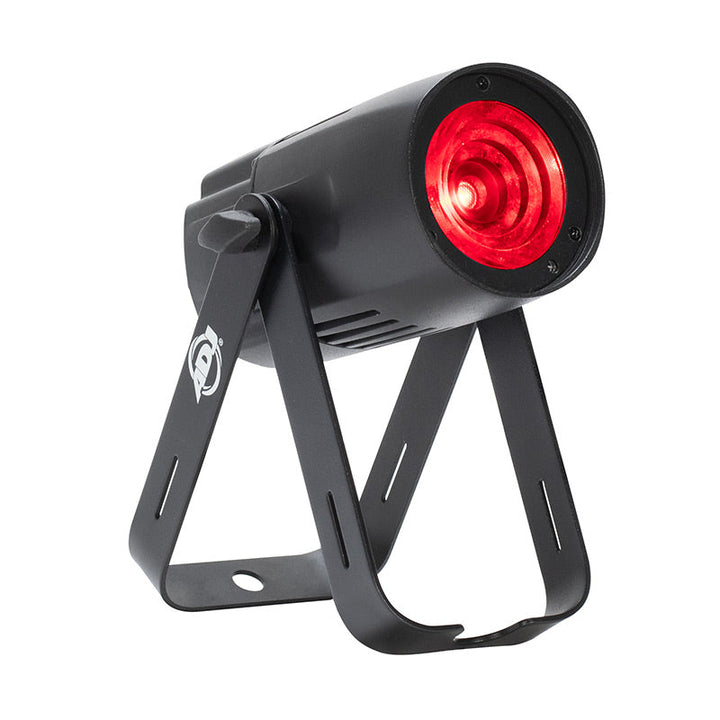

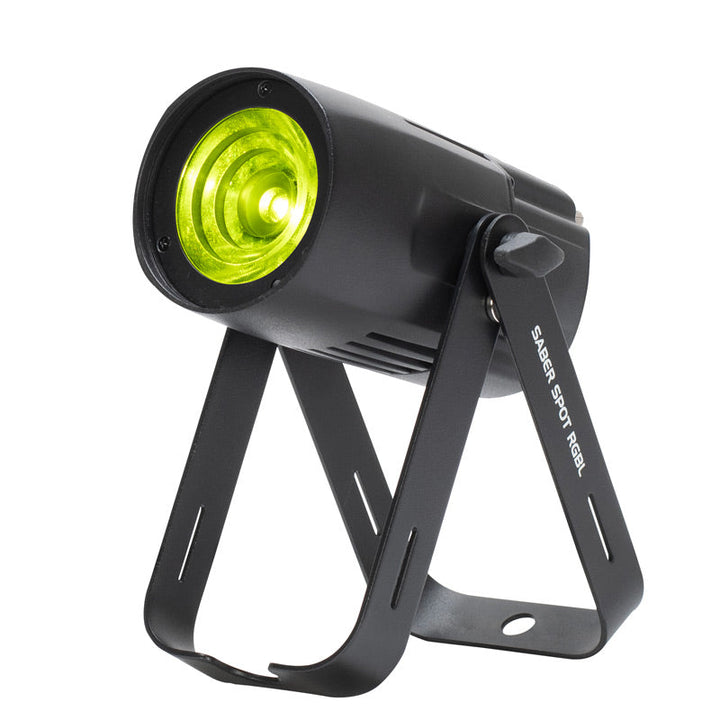

Arriving Now From ADJ USA Building on the success of its predecessor, the ADJ Lighting Saber Spot RGBL expands on the versatility of the modern LED pinspot. Featuring a 20-Watt RGBL (red, blue, green and lime) LEDs source, advanced ACL lens and a tight 5.7-degree beam angle, the Saber Spot RGBL is designed for spotting tables, objects or mirror balls, and creating mid-air beam effects for lightshows.

This fixture is DMX and RDM compliant with 12 DMX channel modes, 63 built-in color macros, 13 built-in color changing programs and has six white color temperature presets ranging from 2700K to 7000K.

A lens kit is supplied with the fixture giving lighting designers the option to change the beam angle to 10 or 45-degrees. Its scissor yoke allows for a variety of hanging options.

The Saber Spot RGBL has a 4-button digital display to navigate through the features and controls, plus indoor power locking In/Thru and 5-pin DMX In/Out pigtails are neatly situated at back of the fixture.

Click here to read the Saber Spot RGBL press release.

Specifications

Optical:

• Light Source: 20-Watt, RGBL LED
• LED Life Expectancy: 30,000 Hrs
• Beam Angle: 5.7°
• Includes 2 interchangeable frost filter lens (10-degree & 45-degree)
• LED Refresh Rate: 3.6KHz

Technical Features:

• DMX and RDM Compliant
• 6 White Color Temperature Settings: 2700K, 3200K, 4000K, 5600K, 6500K & 7000K
• 63 Built-in Color Macros
• 13 Built-in Color Changing Programs
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Includes a scissor yoke to be hung, or set on the ground

Connections:

• Power Input: Indoor power locking
• Power Pass through: Indoor power locking
• Control: 5-pin DMX In/Out pigtails
• With Wired Digital Communication Network

Control:

• 12 DMX Channel Modes: 3 HSI/4 RGBL/4 HSI+/5 RGBL/6 sRGBLI/6 RGBL/7 RGBL/8 RGBL/8 16bit/10 HSI/12 sRGBLI/13 RGBL
• RDM Compliant
• IR (IR Remote Control)

Electrical:

• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Power draw 120V 60Hz: 16.7W, 0.243 Amps
• Power draw 230V 50Hz: 16.7W, 0.147 Amps
• Power Output Current: 1.2A (14W)
• Power Linking: 57pcs @120V, 95pcs @230V

Physical:

• Dimensions (LxWxH): 6.69” x 5.31” x 8.46" (170 x 135 x 215mm)
• Weight: 3.2 lbs / 1.45 kg.
• Black Housing

Certifications & Ratings:

• CE
• cETLus Approved (Control # 4010765)
• IP20

What’s Included:

• 1.83m Indoor locking power cord
• 2 frost filter lens (10-degree & 45-degree)
• Metal clip ring for frost filter lens

Optional Accessories:

• PLC 3, PLC 6, PLC 10 (Indoor locking power link cables)
• UC IR (IR Remote Controller)

Specifications are subject to change without notice.
