Description
PIXIE DRIVER 8000 V2
Pixie Driver 8000 V2 is designed specifically for the ADJ Pixie Strip Series. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 8,160 max pixels limitation (1020 pixels per port) via Art-Net or sACN (streaming ACN) protocols.

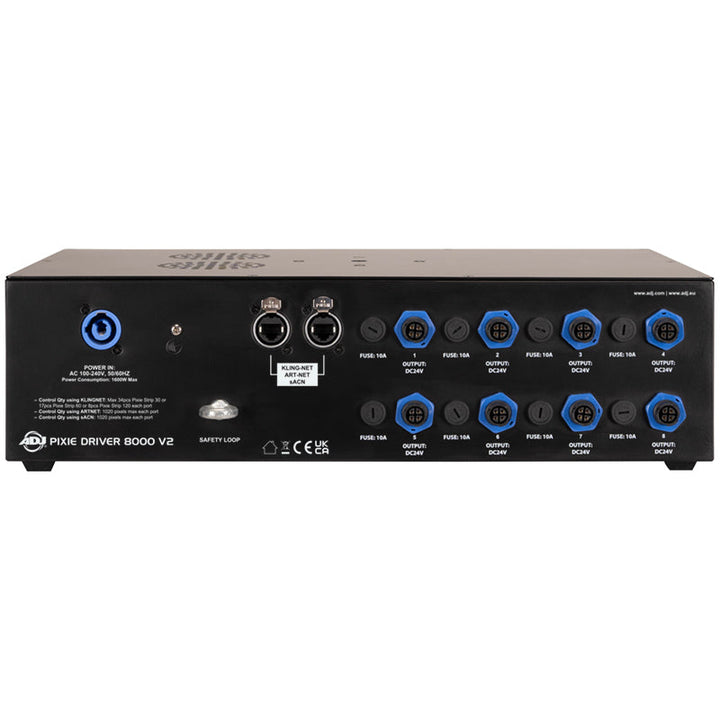

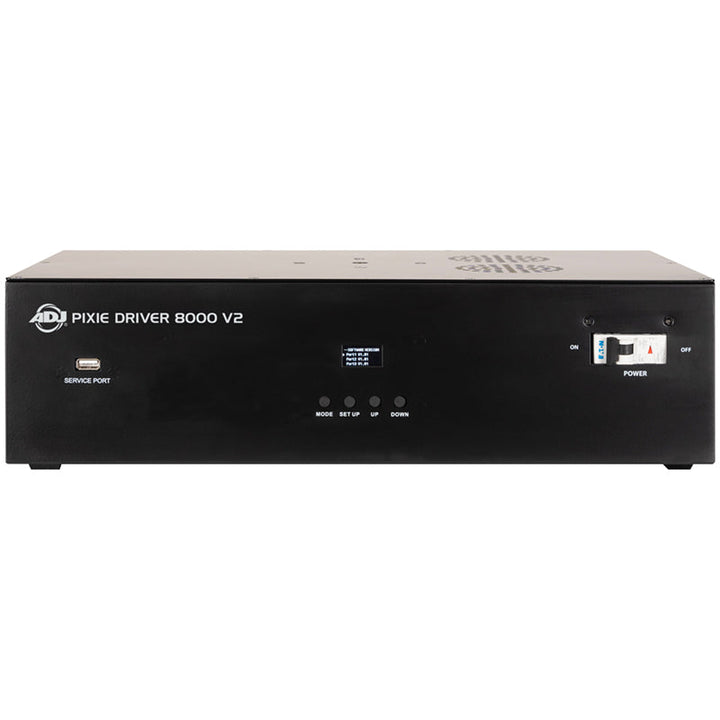

The Pixie Driver 8000 V2 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, (8) Pixie Strip outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixie strip (available in lengths from 2 to 50 feet (For additional details, see Accessories Sold Separately under the Specifications section). The Pixie Driver 8000 V2 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included).
Specifications
Control Features:- Power / data supply for ADJ Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
- Manual RGB mode
- Internal programs
- Manual Dimming and Strobe Control
- Full Pixel Mapping Control
- Drives up to 8,160 Pixels via ArtNet or sACN (1,020 Pixels per port)
- OLED screen with 4-button menu
- USB port for Firmware Updates
- Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)
- Power: PowerLock Input
- Two locking RJ45 ports
- Eight 4-pin DC24V power/data outputs to Pixie Strips
- Bolt to add a clamp to hang from truss (clamp and truss not included)
- Includes 19-inch rack mount ears
- Safety eye
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Power Consumption: 1,600W max
- -4°F to 113°F (-20°C to 45°C)
- Dimensions (LxWxH): 11.8” x 18.9” x 4.7” / 300.3x480x120mm
- Weight: 13.4 lbs. / 6.1 kg.
- CE | cETLus (Pending)

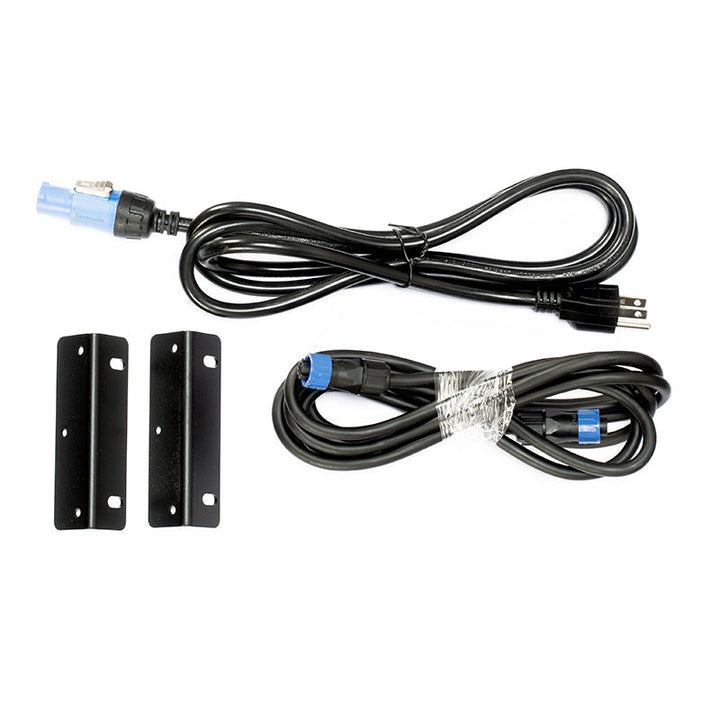

- (1) 10-foot Pixie Strip to Pixie Strip orPixie Driver to Pixie Strip link cable
- (1) SIP20MPC (SIP293): Power Input cable
- (2) 19" Rack Ears
- PSLC1 (PIX158): 1-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC3 (PIX174): 3-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC5 (PIX188): 5-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC10 (PIX200): 10-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC15 (PIX213): 15-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC25 (PIX229): 25-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
- PSLC50 (PIX242): 50-foot Pixie Strip to Pixie Strip or Pixie Driver to Pixie Strip Link Cable
