Description
PIXIE DRIVER 2000 V3
Pixie Driver 2000 V3 is designed specifically for the ADJ's Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60. It provides easy and versatile control options including simple on-board manual dimming and strobe control, plus full pixel mapping control of 2,040 max pixel limitation (1020 pixels per port) via Art-Net or sACN (streaming ACN) protocols.

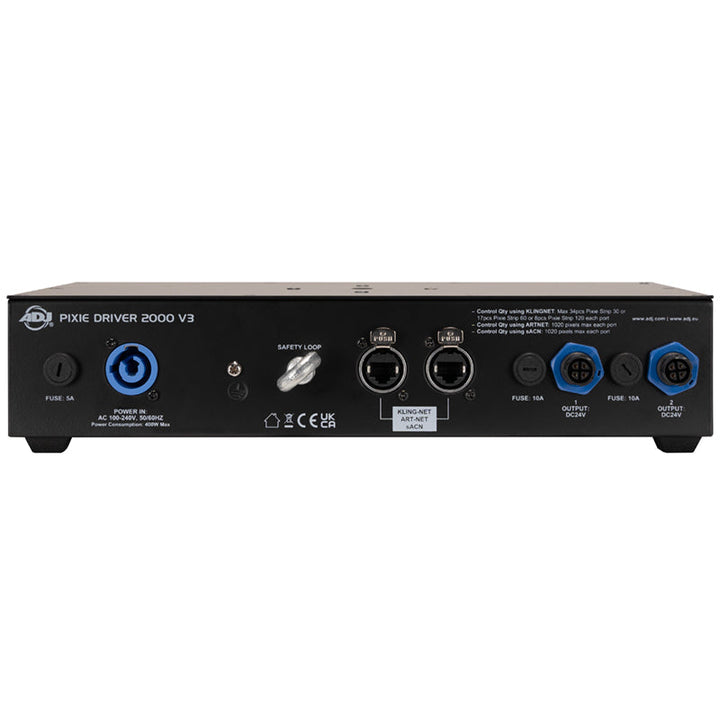

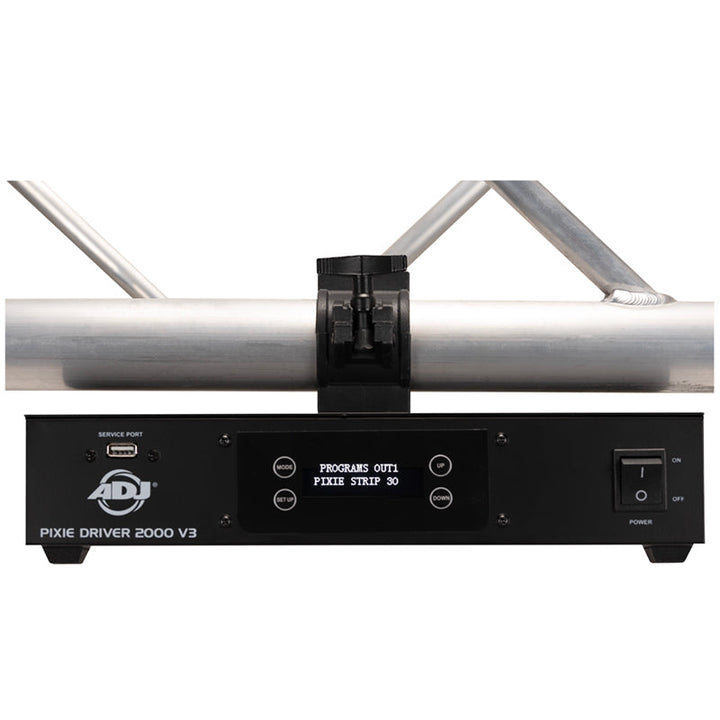

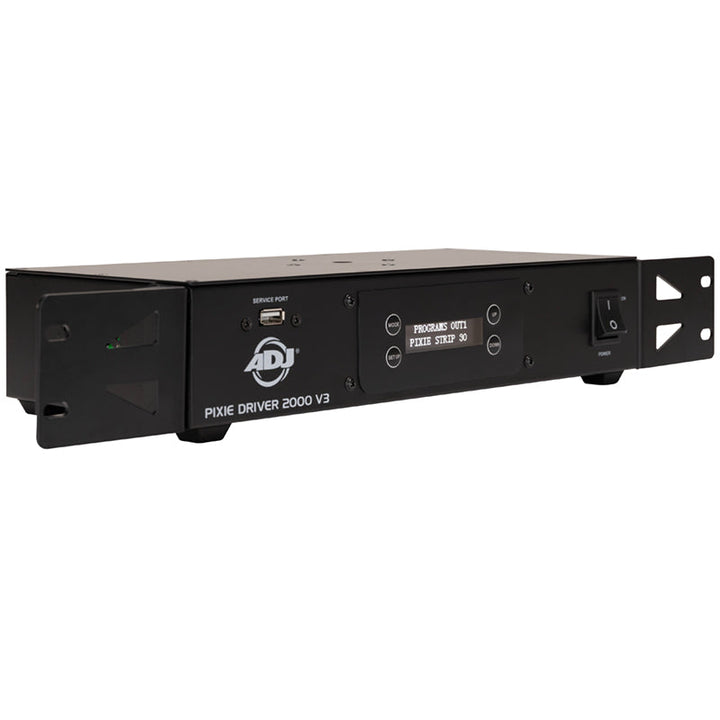

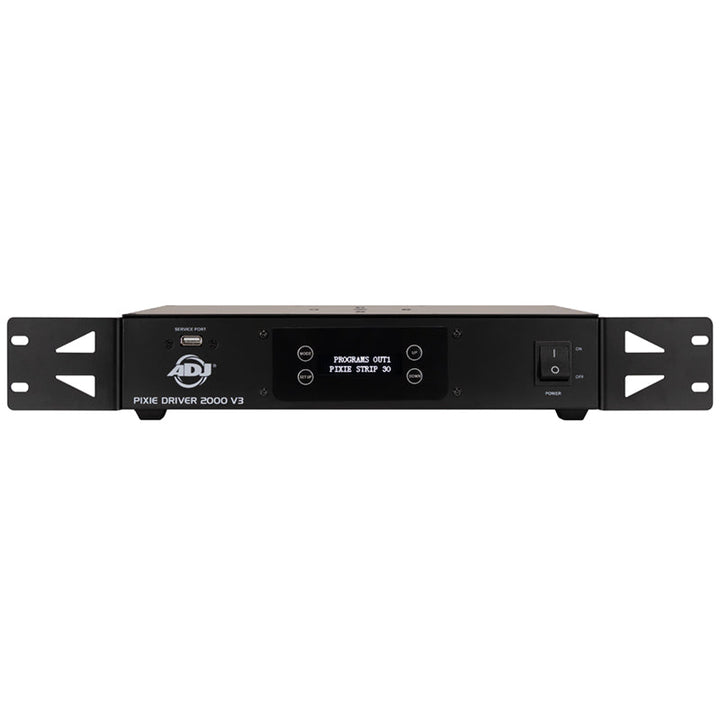

The Pixie Driver 2000 V3 features a universal auto switching power supply (100-240V), a 4-button LCD control menu display, locking RJ45 Ethernet in/out ports, and (2) outputs which use proprietary, 4-pin combo cables (sold separately) that supply power and data to each pixel strip (available in lengths from 1 to 50 feet). The Pixie Driver 2000 V3 can be mounted in a standard 19-inch rack (rack ears included) or attached to truss with a clamp (not included). There is a USB port on the front panel to easily make updates to the firmware.
Specifications
Control Features:- Power / data supply for ADJ Lighting Pixie Strip 30, Pixie Strip 60, Pixie Strip 120 and Pixie Curve 60
- Manual RGB mode
- Internal programs
- Manual Dimming and Strobe Control
- Full Pixel Mapping Control
- 2,040 Pixels via ArtNet and sACN (1020 Pixels per Port)
- OLED screen with 4-button menu
- RDM compatible
- USB port for Firmware Updates
- Art-Net/sACN: max 34x Pixie Strip 30; 17x Pixie Strip 60 or Pixie Curve 60; 8x Pixie Strip 120 (Per port, or any combination not exceeding 1,020 pixels per port)
- Indoor Power Locking Input
- Two locking RJ45 ports
- Two 4-pin DC24V power/data outputs to Pixie Strips
- Bolt to add a clamp to hang from truss (clamp and truss not included)
- Includes 19-inch rack mount ears
- Safety eye
- Multi-voltage operation: AC 100-240V, 50/60Hz
- Power Consumption: 400W max
- -4°F to 113°F (-20°C to 45°C)
- Dimensions (LxWxH): 18.9” x 7.11” x 2.91” / 480x180.8x74mm
- Weight: 5.6 lbs. / 2.5 kg.
- Twist-Lock power cable
- 19-inch rack mount ears
- 4-pin data cable
- CE
- cETLus
- PSLC1 (PIX158): 1-foot Pixie Strip Link Cable
- PSLC3 (PIX174): 3-foot Pixie Strip Link Cable
- PSLC5 (PIX188): 5-foot Pixie Strip Link Cable
- PSLC10 (PIX200): 10-foot Pixie Strip Link Cable
- PSLC15 (PIX213): 15-foot Pixie Strip Link Cable
- PSLC25 (PIX229): 25-foot Pixie Strip Link Cable
- PSLC50 (PIX242): 50-foot Pixie Strip Link Cable
