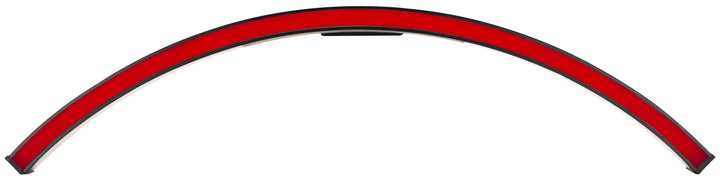

Pixel Curve (90°) with 60 x SMD RGB LED - 0.5m

Pixie Curve 60

AVAILABLE NOW FROM ADJ USA Part of the Pixie Strip pixel-mapped fixtures, the Pixie Curve 60 is an indoor, 90-degree curved, LED pixel batten that adds another creative element to the current line-up of fixtures in the series. The Pixie Curve 60 can be used in multiples to create circles or wave patterns. Or use it with the Pixie Strip 120, Pixie Strip 60 and Pixie Strip 30 linear models to construct new shapes in light.

The Pixie Curve 60 features sixty (60) tri-color RGB SMD LEDs with a 16.5mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications. Each Pixie Curve 60 is housed in a lightweight aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.

Easy and versatile control options are handled by the Pixie Driver 2000 V3 or the Pixie Driver 8000 V2 (both sold separately).

The Pixie Driver 2000 V3 provides simple on-board manual dimming and strobe control, and full pixel mapping control of 2,040 max pixels via Kling-Net and 340 max pixels via Art-Net and sACN (streaming ACN) protocols.

The Pixie Driver 8000 V2 provides simple on-board manual dimming and strobe control, and full pixel mapping control of 8,160 max pixels via Kling-Net and 1,360 max pixels via Art-Net and sACN (streaming ACN) protocols.

Power and data are supplied via proprietary, 4-pin combo cables (sold separately) which are available in lengths from 1 to 50 feet.

Specifications

Source:

• • SMD RGB 3-in-1, APA-102C LEDs

  • Color Resolution: 8 bits per color (24 bit per pixel)

  • Viewing Angle: 120 x 120 degrees

  • Pixels Per Fixture: 60 pixels

  • Pixel Pitch (pixel center-to-center) 16.5mm

  • PWM (Pulse Width Modulation): 44,000Hz

  • 50,000 Hours Life

Connectors:

• • 4-pin Power/Data Input & Output


Dimensions & Weight:

• • Length: 36.4” (924mm)

  • Width: 1.3” (32mm)

  • Height: 3.1” (79mm)

  • Weight: 2.0 lbs. (1.2kg)


Power:

• • DC24V

  • Max Power Consumption: 12W

• Thermal:

  • Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)

  • Storage Temperature: -22°F to 113°F (-30°C to 45°C)


• Certifications & IP Rating:

• • CE

  • cETLus (Pending)

  • FCC

  • IP65


What's Included:

• • Round clear cover (x1)

  • 10.6" (0.27m) 4-pin Power/Data Cable (x1)

  • Adapter Bracket (x1)

Specifications and documentation subject to change without notice.
