3-in-1 Lighting Interface with Power/Aria X2/W-DMX

PC415X

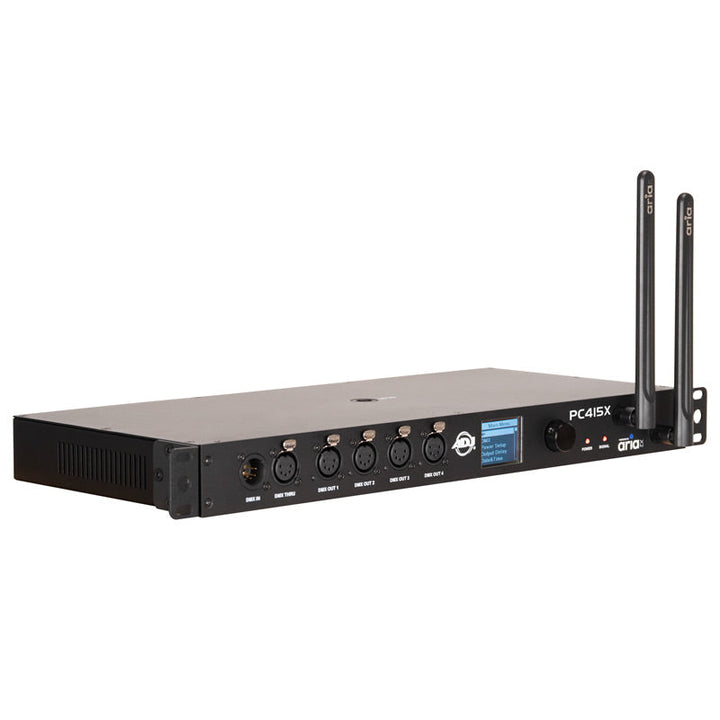

The PC415X is an innovative, all-in-one solution for lighting professionals, venues, and production teams seeking a reliable, efficient, and versatile power distribution and DMX control hub. This state-of-the-art device seamlessly integrates three essential features into one compact, rack-mountable unit: a 4-output power distribution center, an advanced Aria X2 wireless DMX transceiver, and a 4-output DMX/RDM splitter. This powerful combination provides users with an unprecedented level of control and flexibility, making it an invaluable asset for live events, stage productions, touring, and fixed installations.

Specifications

Key Features:

• Multi-functional Design: The PC415X offers 4 power outputs, an Aria X2 transceiver, and DMX/RDM splitter in one device

• Flexible DMX Channel Modes: Operate in 1, 2, or 4 DMX channel modes, ensuring compatibility across different setups

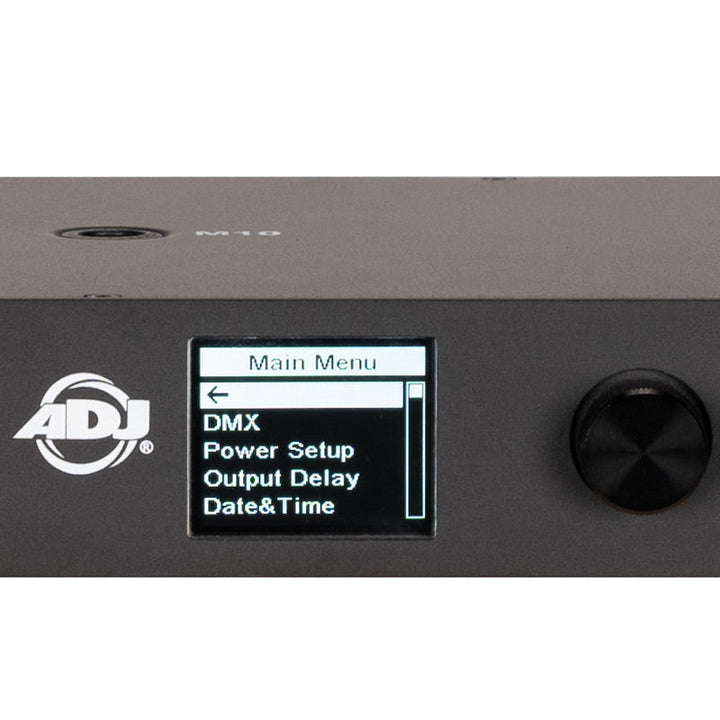

• User-Friendly Control: Navigate with ease using the push button and encoder wheel, complemented by an OLED control menu display

• Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation

• Single DMX Universe: Works seamlessly as a single DMX universe transmitter, ideal for precise control over lighting configurations

• Multi-Protocol Support: Features Sub-GHz, 2.4 GHz WiFi, Bluetooth, and proprietary Aria X2 Mesh Protocol for reliable wireless communication

• Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments

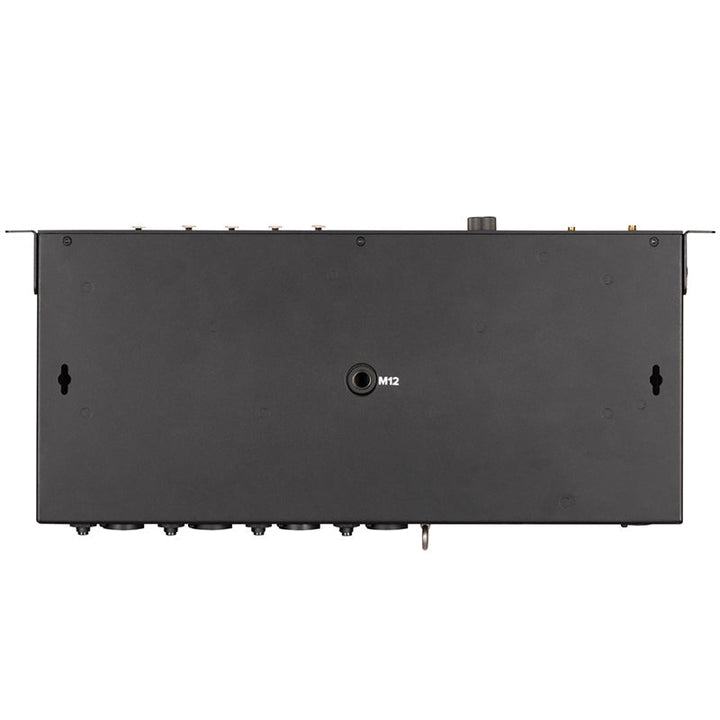

• Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options


• Supported Protocols:

• DMX/RDM: Designed for DMX lighting control, with RDM support planned in a future software release

• Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication, plus Bluetooth 5.2 for versatile device connectivity


• RF Characteristics:

• Frequency Range: Operates between 2404-2480 MHz, with additional EU (863-870 MHz) and US (902-928 MHz) bands.

• Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference

• Over-the-Air Updates: Future-proof your setup with OTA updates


• Standards Compliance:

• Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation

• Health EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards, ensuring safety and low interference


• Connectors:

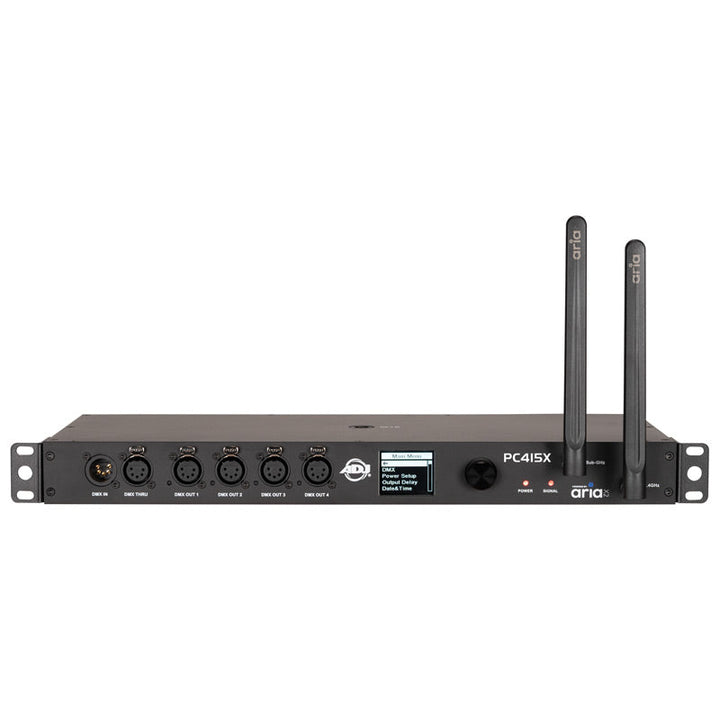

• DMX and Power Options: Features (1) DMX input, (4) DMX outputs, and (4) IP65 locking power outputs with 15A resettable breakers.

• Antenna Compatibility: Equipped with dual 5G JT SMA antennas.


• Power Requirements:

• Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch

• Low Power Consumption: Runs efficiently with minimal power requirements and features a CR2032 lithium battery for critical backup


• Physical Specifications:

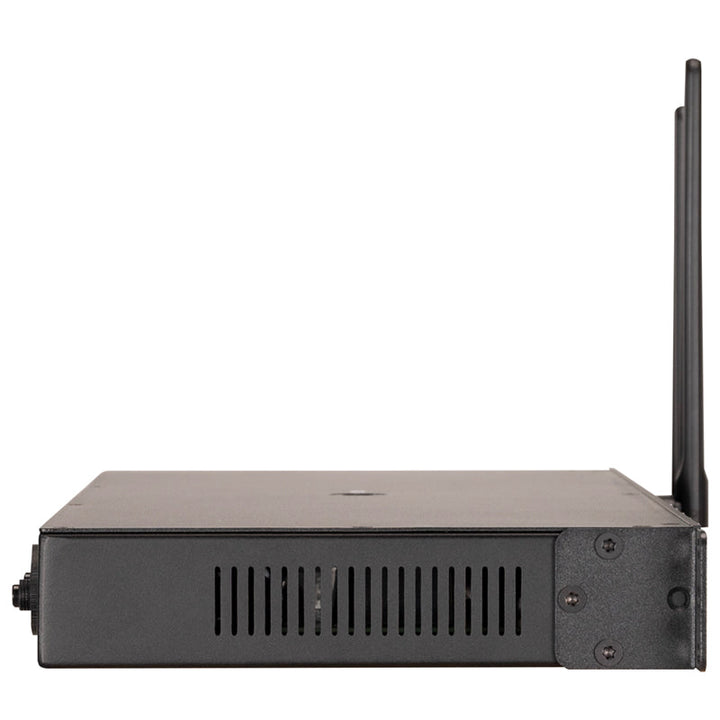

• Robust Design: Durable IP20 metal enclosure with a digital screen, rotary knob, and safety eyelet

• Temperature Tolerant: Operates in ambient temperatures up to 113°F and humidity below 75%

• Compact Dimensions: At just 7.4 lbs, it’s designed for easy handling and secure installation


• Dimensions Weight:

• Length: 19" (482mm)

• Width: 9.81" (249.17mm)

• Height: 1.73" (43.80mm)

• Weight: 7.4 lbs (3.36 kg)

• Approvals Included Accessories:

• Approvals: CE, cETLus (pending), IP20-rated for indoor use

• Accessories: Comes with rack ears for a standard 19-inch rack mount, two Aria X2 antennas and one IP65 locking power cable


• Specifications are subject to change without notice.
