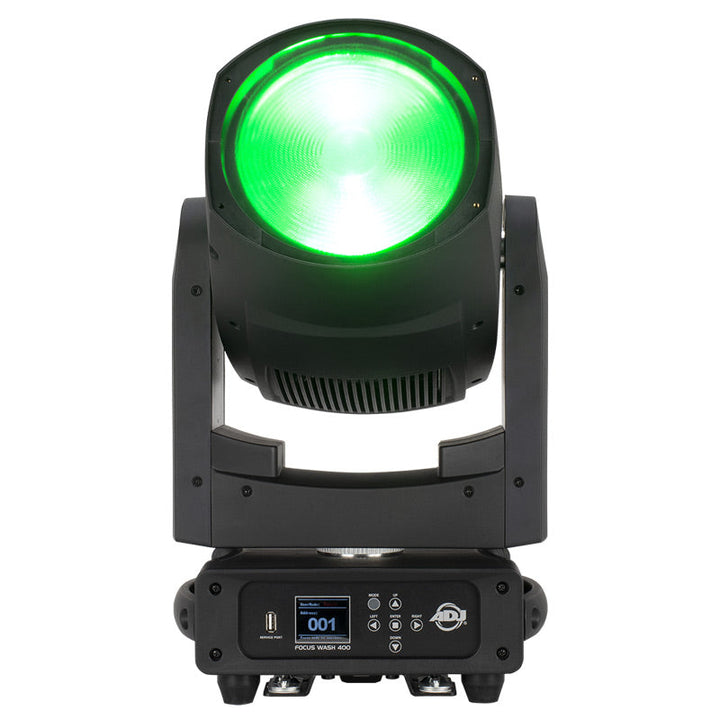

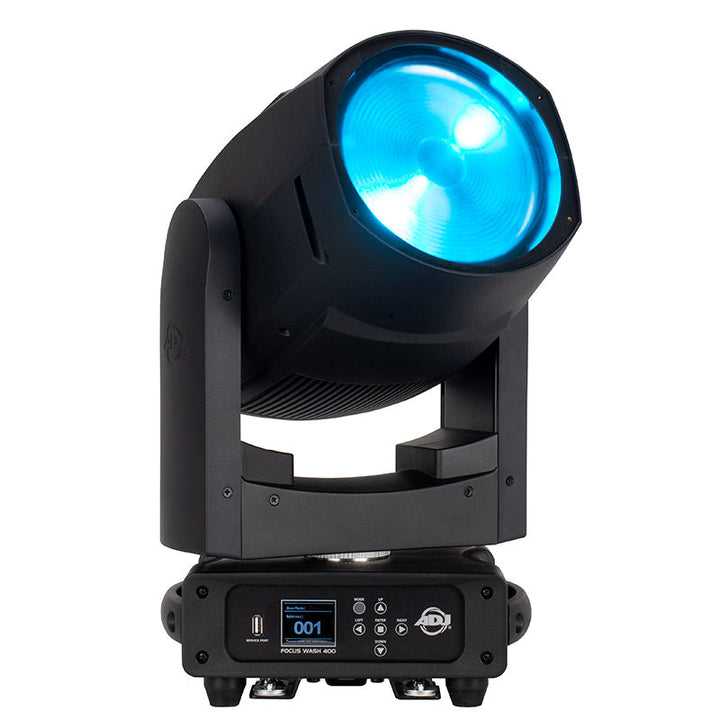

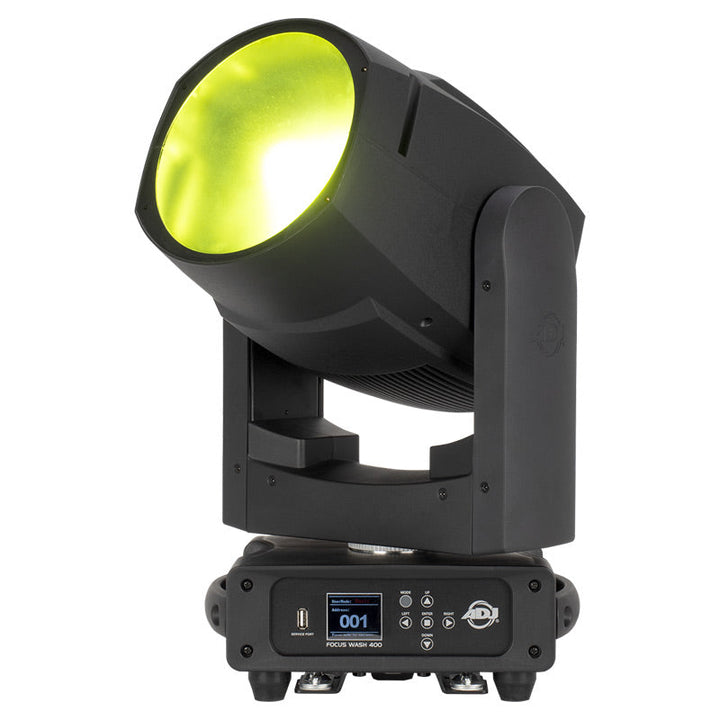

Moving Head (Wash) with 400W RGBACL LED

Focus Wash 400

AVAILABLE NOW FROM ADJ USA The FOCUS WASH 400 is a 400W moving head wash fixture powered by a 400W RGBALC Red, Green, Blue, Amber, Cyan and Lime) LED engine. A 6-inch Fresnel lens with 9 to 43 degree motorized zoom produces an even field light output.

Ideal for live broadcasting and film use, this fixture has flicker free operation, adjustable refresh rates from 900Hz to 25kHz, a quiet fan mode, linear white color temperature control from 2700K - 6500K, as well as, preset white color macros (2700K, 3200K, 4000K, 5600K and 6500K). In addition to it’s tunable white feature, the Focus Wash 400 has a virtual CMY color mixing channel which allows users to choose any hue on a color picker.

The FOCUS WASH 400’s unique color engine produces a high CRI of 90+ for bright whites and a CRI R9 of 88 to help make red tones more vibrant. The fixture also includes, 16-bit pan / tilt movement, RGBACL color mixing LED engine, variable dimming modes / curves and strobe effects, DMX and RDM (remote device management) protocol support.

The fixture comes standard with locking power In/Out connections, locking 3-pin & 5-pin DMX In/Out sockets, color LCD menu display with 6 button control panel, multiple unit power linking, a multi-voltage universal auto switching power supply (AC100-240V), USB port to conveniently update firmware, and omega brackets with two hanging points.

Click here to read the Focus Wash 400 press release.

Specifications

SOURCE:

• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
• 50,000 Hour Average LED Life*

• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 7139 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
• 11072 LUX, 1029 FC @ 9.8’ (3m) (Zoomed In / Full ON)
• 1858 LUX, 173 FC @ 9.8’ (3m) (Zoom Out / Full ON)
• Beam Angle: 9° to 43°
• Field Angle: 17° to 55°
• Color Temperature: Tunable, 2400K to 8500K

• CRI: 95.2

COLOR:

• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
• Virtual Color Wheel Control
• Virtual CMY Control

EFFECTS:

• RGBACL Color Mixing
• Virtual CMY Color Mixing
• 9° - 43° degree Motorized Zoom
• Electronic Strobe and Dimmer
• Color Temperature Red to Green control via DMX
• Linear Color Temperature control, 2700K to 10,000K
• Preset Color Temperatures (2700K, 3200K, 4000K, 5600K and 6500K)

CONTROL / CONNECTIONS:

• 5 DMX Channel Modes: [Basic (17), Standard (22), Extended (24), CMY Standard (18) or CMY Extended (24)]
• Selectable LED Refresh Rates, 900Hz to 25kHz.
• Linear Dimming with user selectable Dim Curves, Dim Modes and Dim Speeds
• 6-button Control Panel and LCD Menu Display
• USB Firmware Update Port
• RDM (Remote Device Management)
• Quiet Fan Mode

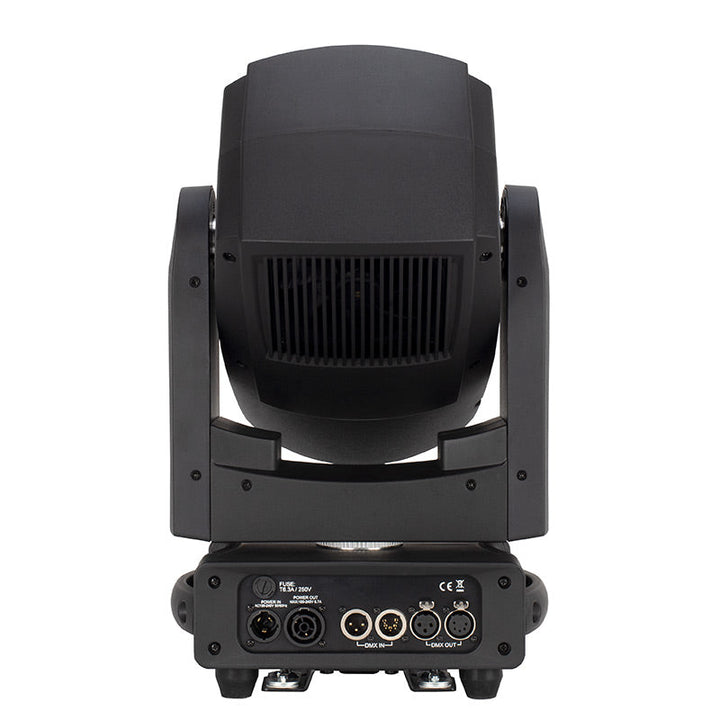

• Locking 3-pin and 5-pin XLR Connector In/Out
• IP65 Locking Power Connector In/Out
• With Wired Digital Communication Network

SIZE / WEIGHT:

• Length: 10.96" (278.43mm)
• Width: 8.4" (213.33mm)
• Vertical Height: (Without Snoot)19.6" (498.1mm)
• Vertical Height (With Snoot) 22.37" (568.1mm)
• Weight: 23.5 lbs. (10.7 kg)

ELECTRICAL / THERMAL:

• Multi-voltage: AC 100-240V / 47/63Hz
• 460W Power Consumption @ 120V
• 430W Power Consumption @ 240V
• Multiple Unit Power Linking
• 5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS:

• CE Compliant
• cETLus (Control #4010765)
• IP20
• dB Rating: 46dB @ 3'

INCLUDED ACCESSORIES:

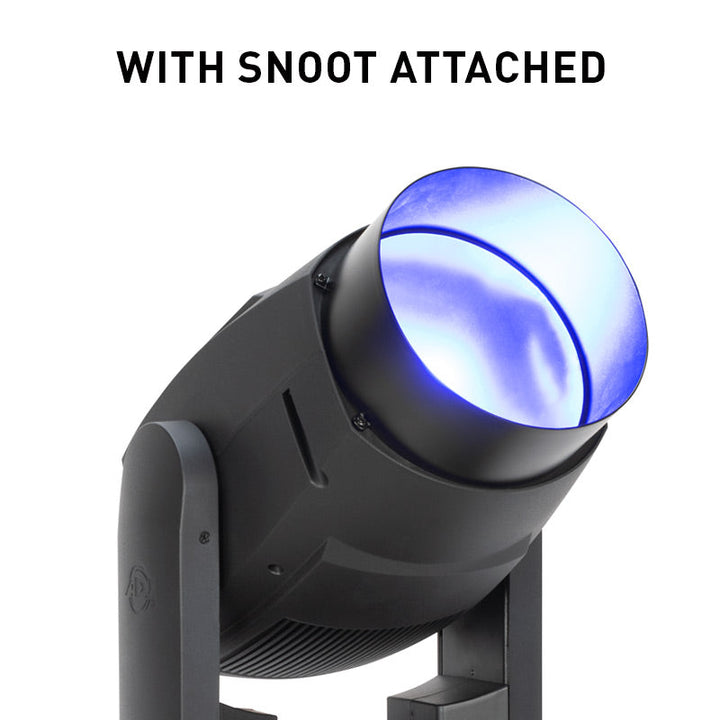

• Snoot
• 1x40 Degree Linear Lens
• 2 Omega Brackets
• Safety Cable
• IP65 Locking Power Cable

Specifications and documentation subject to change without notice.
