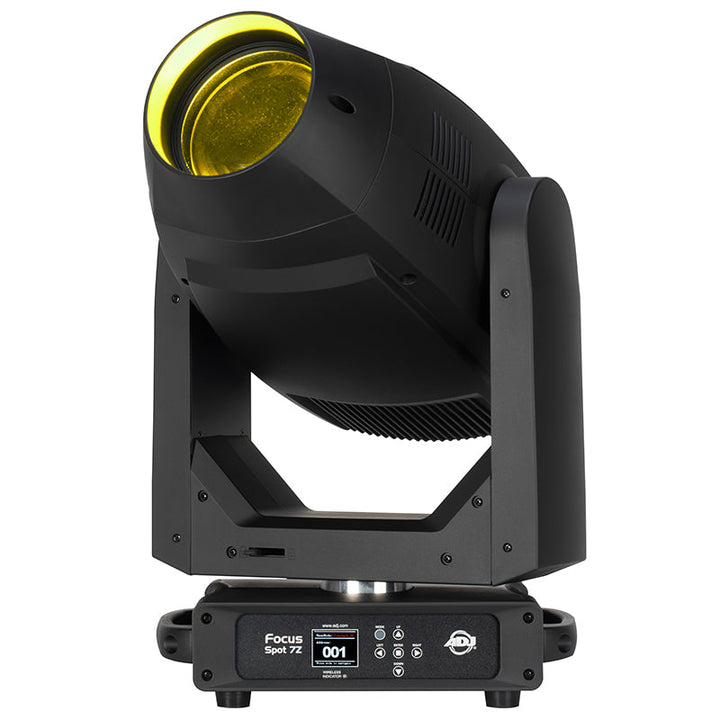

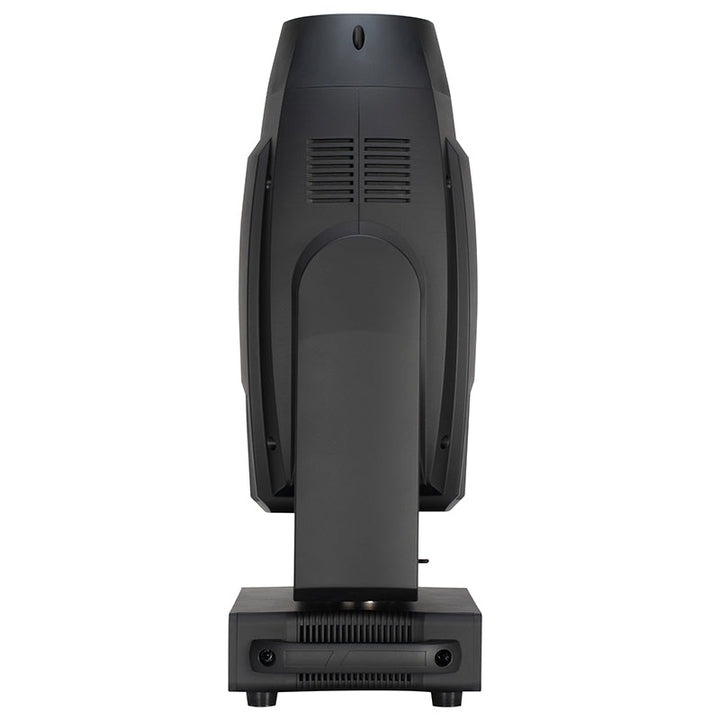

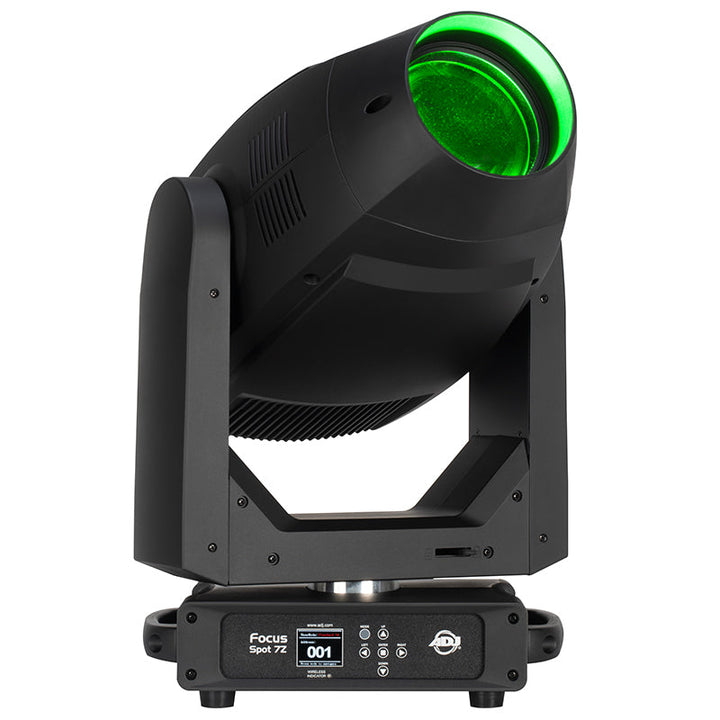

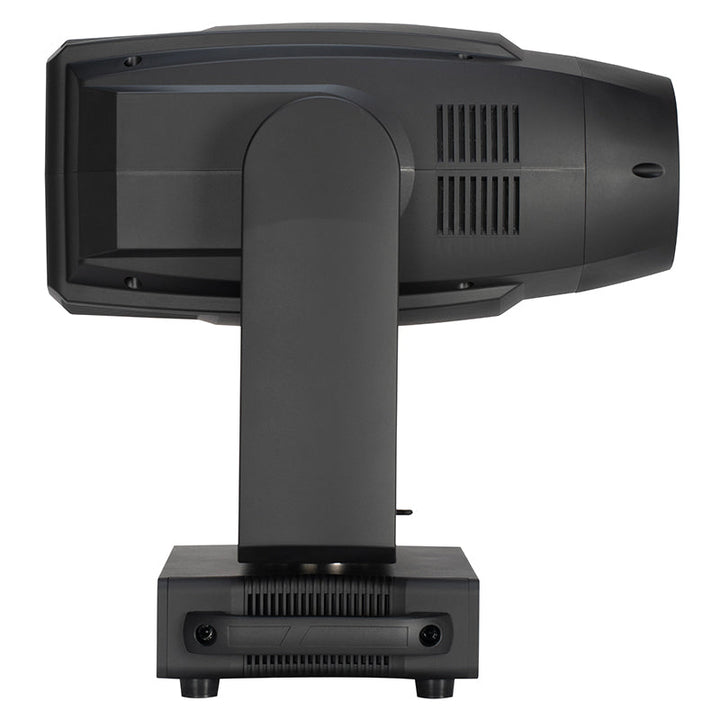

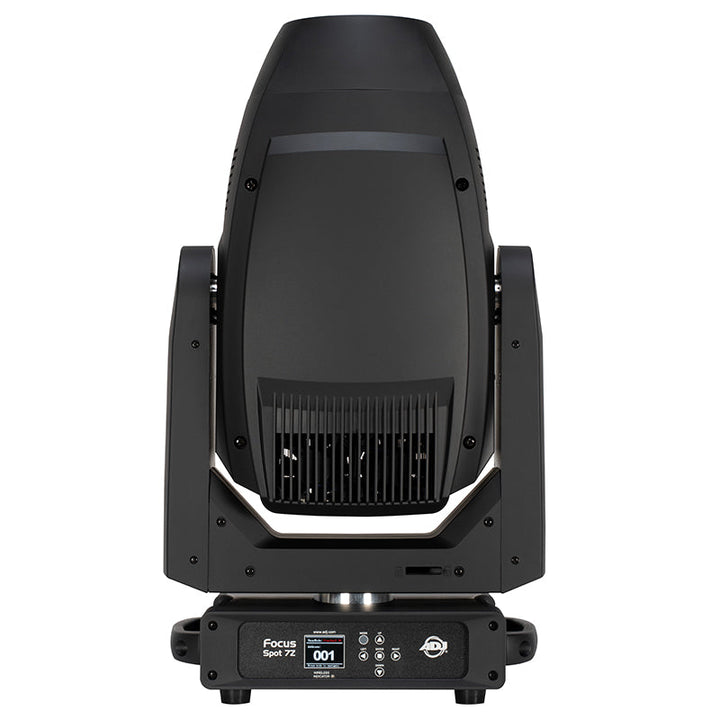

Moving Head with 420W White LED

Focus Spot 7Z

Part of ADJ’s popular Focus Series of LED-powered moving head luminaires, the Focus Spot 7Z is a potent and feature-rich spot fixture. Its light source is an efficient 420W white (8,000K) LED engine, which has an average operational life of 20,000 hours. Focused through precision-engineered optics, it allows the fixture to generate a bright, punchy and even output of 20,000 Lumens.

An exhaustive collection of beam-shaping tools is packed into the Focus Spot 7Z, equipping lighting designers to fully unleash their creative potential. This begins with an advanced color selection system which combines a variable CMY and CTO (2,700K to 8,000K) color mixing system with a color wheel that features seven dichroic slots (including High CRI and CRB filters).

The fixture features two independent GOBO wheels, each of which incorporate seven slots for interchangeable, indexed-rotating patterns. In addition, it also incorporates an animation wheel with indexed rotation as well as two separate rotating prisms (4-facet circular and 6-facet linear). Motorized zoom (6° ~ 48°), focus and iris are integrated into the optical system as are two separate frost filters (Light to blur GOBO patterns and Heavy to generate a wash output).

Weighting in at only 51.7 lbs. (23.45kg), the Focus Spot 7Z is lighter and has a smaller footprint than other leading spot/wash fixtures in its class.

Click here to read the Focus Spot 7Z press release.

Specifications

• 420W White LED Engine
• 20,000 Hour Average LED Life

• 20,000 Total Lumens
• 7,000K, >73CRI (without CRI Filter)
• 7,700K >85CRI (with CRI Filter)
• 50,528 LUX @16.4’ (5m) (6° Beam)
• 1,799 LUX @16.4’ (5m) (48° Beam)

• 4-Facet Circular 6-Facet Linear Rotating Prisms
• 2 Frost Filters (Light Heavy)
• Animation Wheel (Rotatable and Indexable)
• Motorized Zoom (6° ~ 48°) - plus Fine Zoom
• Motorized Focus (plus Fine Focus)
• Motorized Iris
• Electronic Dimming Strobe (1-20Hz)

• Full CMY color mixing
• Variable CTO (2,700K to 8,000K)
• Colors Wheel with 7 dichroic slots (Includes High CRI and CTB Filters)
• CMY and Color Wheel preset macros

• (2) Gobo Wheels
• #1 - (7) Interchangeable Rotating-Indexing Glass Gobos
• #2 - (7) Interchangeable Rotating-Indexing Glass Gobos

• (3) DMX Channel Modes (30 / 34 / 45)
• DMX512, Art-Net and sACN protocols
• Aria X2 Wireless Management / DMX System
• RDM (Remote Device Management) compliant
• 6 Button Touch Control Panel
• Full Color 180° Reversible LCD Menu Display
• 8 / 16 Bit Resolution Adjustable Movement
• 5-pin XLR DMX In/Out
• RJ45 connectors In/Out
• Locking In/Out power connections
• With Wired Digital Communication Network
• 5 Dim Curve Modes
• 7 Dimmer Modes
• Adjustable Fan Speeds
• Adjustable Refresh Rates (900Hz - 25,000Hz)

• Pan: 540 or 630-degrees
• Tilt: 270-degrees
• Fine Pan/Tilt
• Pan Tilt Locks

• Length: 18.8” (477.5mm)
• Width: 14.7” (374mm)
• Vertical Height: 25.7” (653mm)
• Center Spacing: 24.0” (609.6mm)
• Weight: 55.3 lbs. (25.1kg)

• AC 100-240V - 50/60Hz
• Max Power Consumption: 524W
• Max ambient temperature: 14°F to 113°F (-10°C to 45°C)
• Max housing temperature: 136°F (58°C)

• DB Rating @ 3ft.: 49dB
• BTU: 0.53
• BTU/H: 1,909.60

• CE | ETL Approved (Control #4010765)
• IP20

• Locking Power cable
• 180mm Omega brackets (x2)
