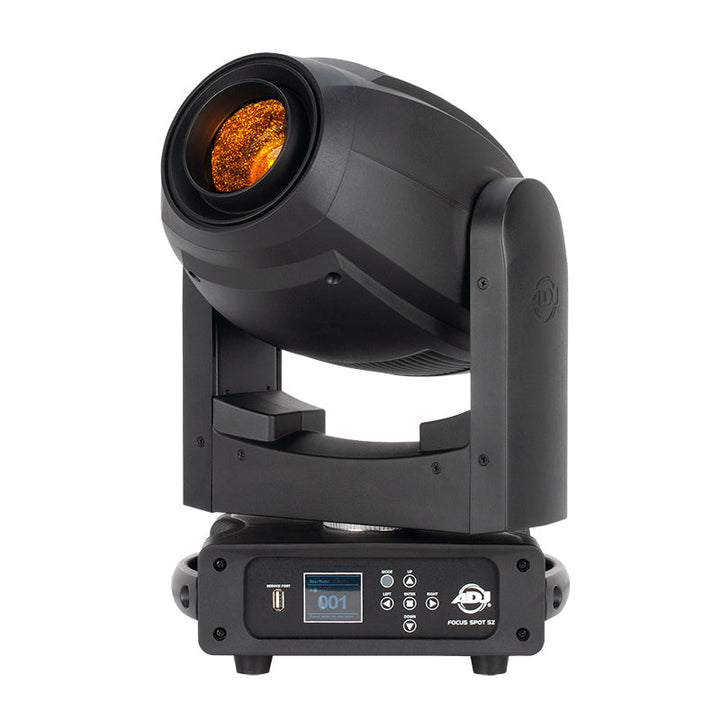

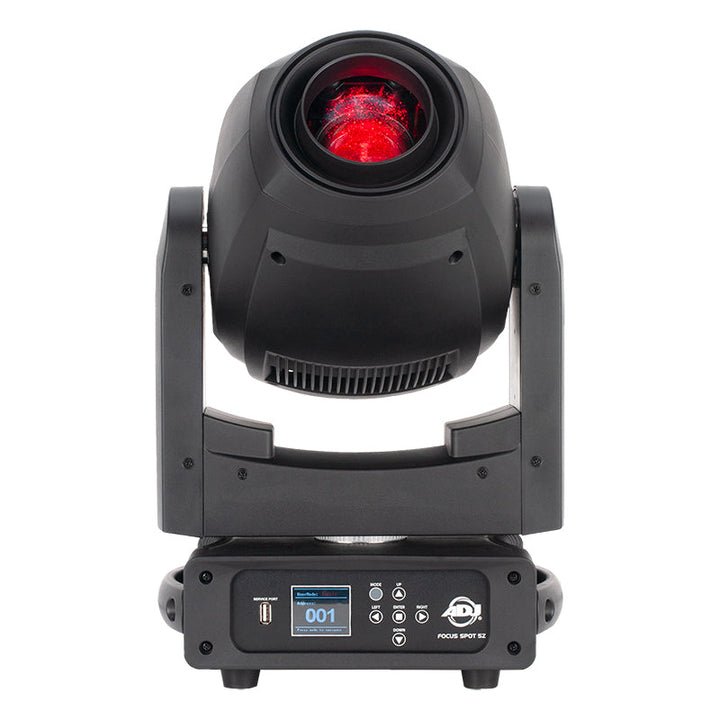

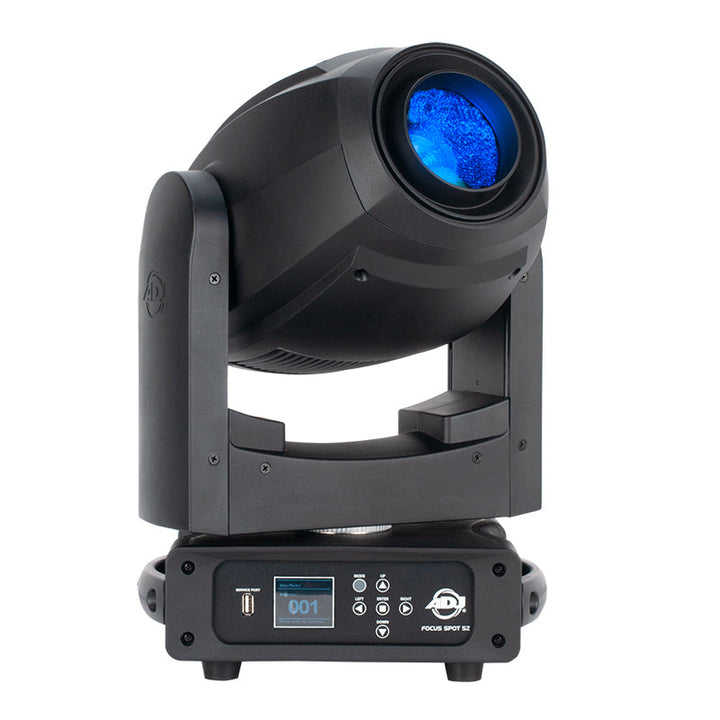

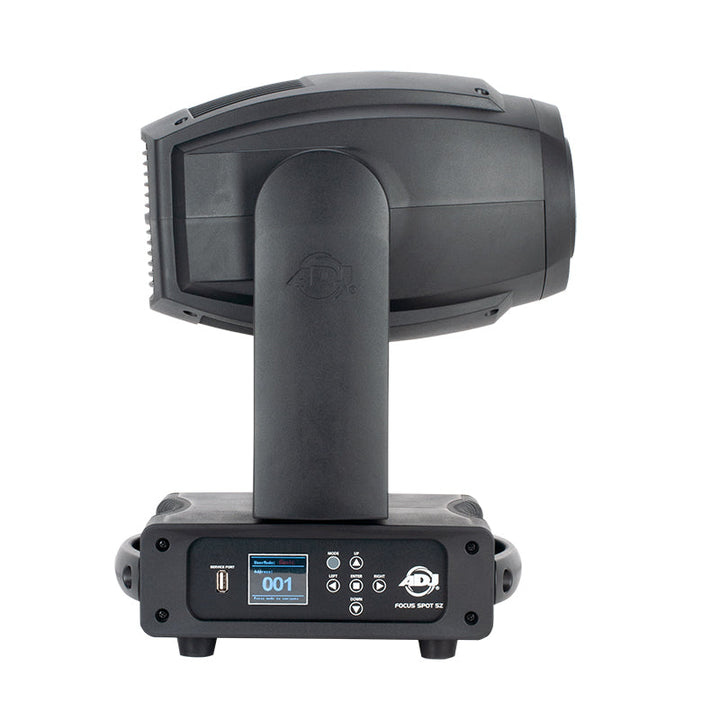

Moving Head with 200W CW LED

Focus Spot 5Z

The Focus Spot 5Z is powered by a brilliant 200W cool white LED engine and is equipped with motorized focus, zoom (11 ~ 22-degree zoom), and two Frost filters. It is designed for temporary live events and fixed installations in nightclubs, stages or churches. It is professionally fit with one GOBO wheel with 6 rotating/replaceable GOBOS (5 aluminum and 1 glass GOBO), two COLOR wheels, each with 8 vibrant colors plus white, and 2 rotating/indexable prisms, (one 5-facet linear and one 6-facet circular). It also has two frost effects (heavy frost and light frost).

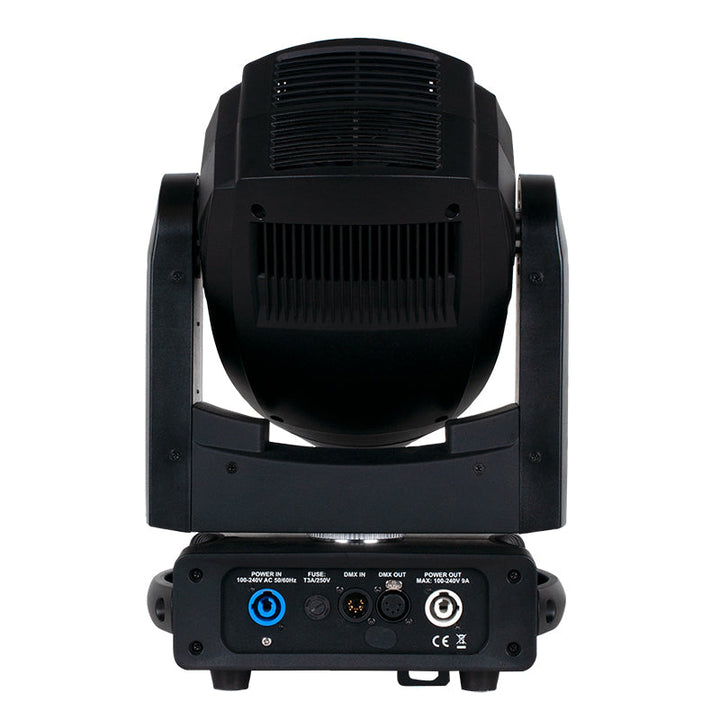

The Focus Spot 5Z has locking power In and out connectors to daisy chain the power, as well as 5-pin DMX In/Out to transmit a DMX signal from one fixture to the next. There is a USB firmware update port built-in plus advanced control options such as: 16-bit fine pan and tilt, multiple DMX control modes, and 6 different dimming options. The Focus Spot 5Z offers a robust light output in a light weight, compact foot print (18-inch high and one 23 pounds).

The Focus Spot 5Z fits in the ADJ DRC MH and QRC MH road cases.

Click here to read the Focus Spot 5Z press release.

Specifications

• 200W Cool White LED Engine (50,000 hr.)

• Motorized Focus
• 2 Frost Filters to create wash effects
• Motorized Zoom: 11 ~ 22-degrees
• 2 Prism FX: Rotating 5-facet Linear rotating 6-facet Circular
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• 2 cooling fans
• Silent fan mode

• 8 dichroic colors + white on two separate wheels (includes CTO, CTB and UV filters)

• 6 Gobos (5 aluminum GOBOs, 1 glass GOBO) + open
• All GOBOs are removable rotatable
• GOBO Shake Effect
• Aluminum GOBO size: 23mm (outer); 19mm (viewable); 0.5mm (thickness)
• Glass gobo size: 23mm (outer); 19mm (viewable); 3.3mm (thickness)

• Prism Wheel 1: Rotatable 6-facet Circular
• Prism Wheel 2: Rotatable 5-facet Linear
• Each Prism is indexable

• Frost 1: Heavy frost for wash effect
• Frost 2: Light frost creates lightly blurred edges for GOBO and Prism FX

• 3 DMX Channel Modes: 19/22/26
• Color LCD display with 6-button function menu
• Control Mode: DMX512 or internal programs
• 6 Dimming Curve Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
• 0-100% smooth dimming
• Various strobe speeds
• USB firmware update port
• With Wired Digital Communication Network
• RDM (Remote Device Management)
• Adjustable LED refresh rates (900 ~25,000 Hz)

• Pan: 630 degrees
• Tilt: 270 degrees

• DMX Connections: 5-pin XLR In/Out
• Power Connections: PowerLock In/Out to daisy chain power

• Multi-voltage operation: 90-240V, 50/60Hz
• Max power consumption: 280W

• Dimensions: 7.15” (L) x 10.97” (W) x 18” (H) (181.5 x 278.61 x 457.4mm)
• Weight: 23 lbs. / 10 kg.

• Omega Bracket
• 1.83M locking power cable

• DRC MH: 2 Focus Spot 5Z fit in the DRC MH Road Case
• QRC MH: 4 Focus Spot 5Z fit in the QRC MH Road Case

• Approvals / Rating :
• ETL Approved / CE Certified
