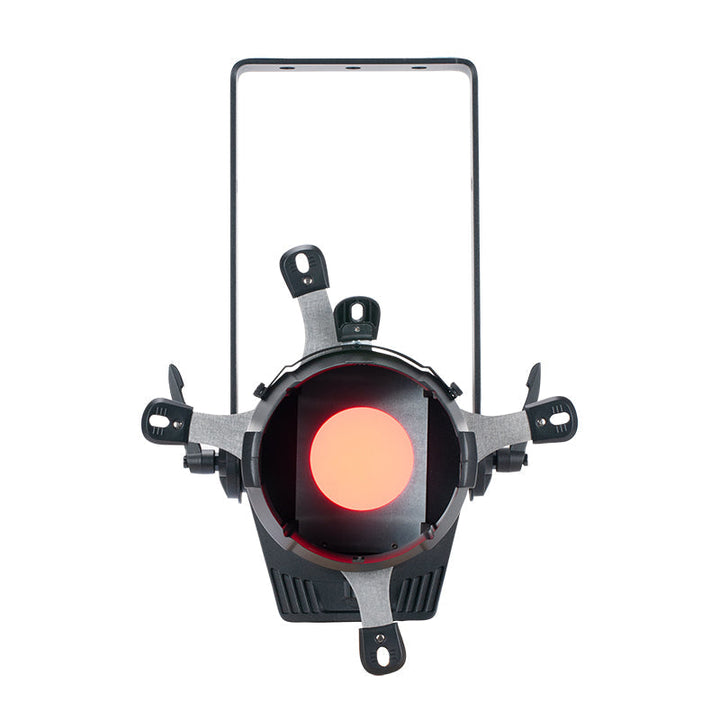

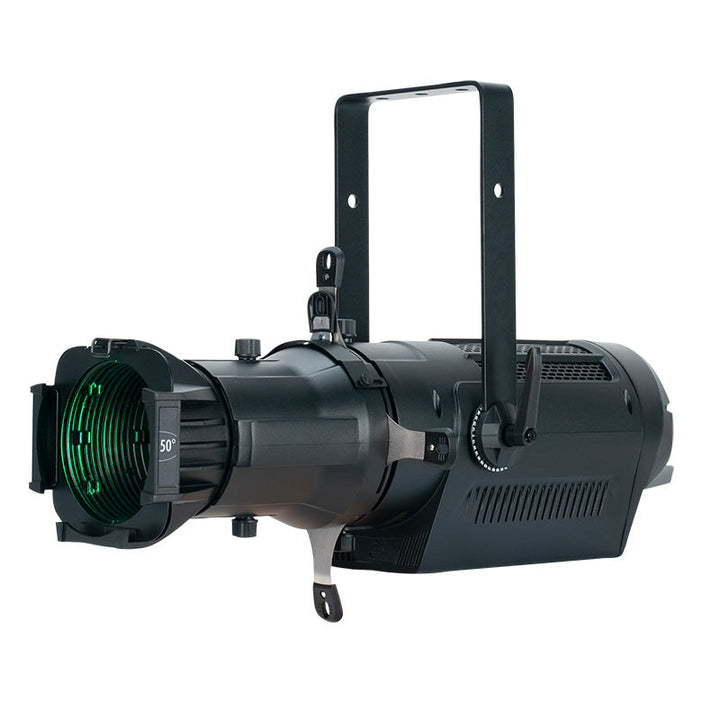

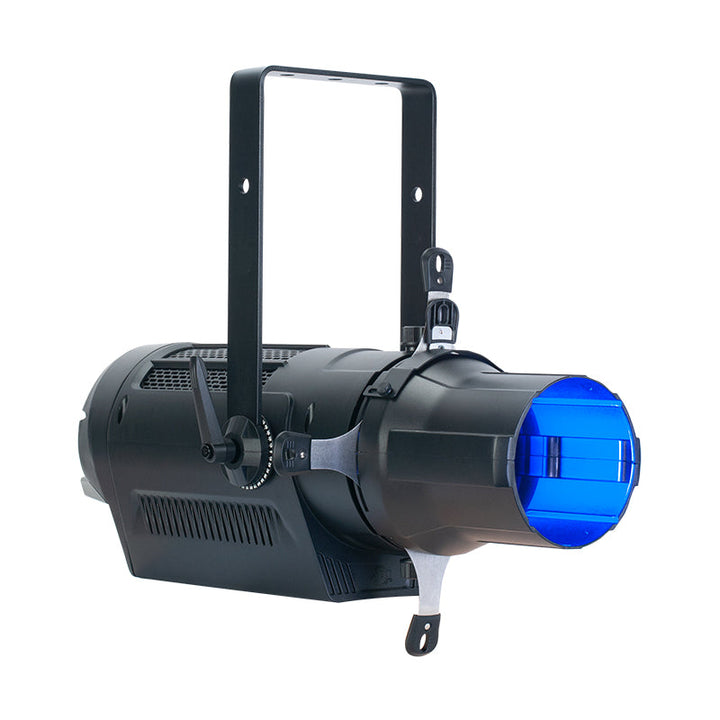

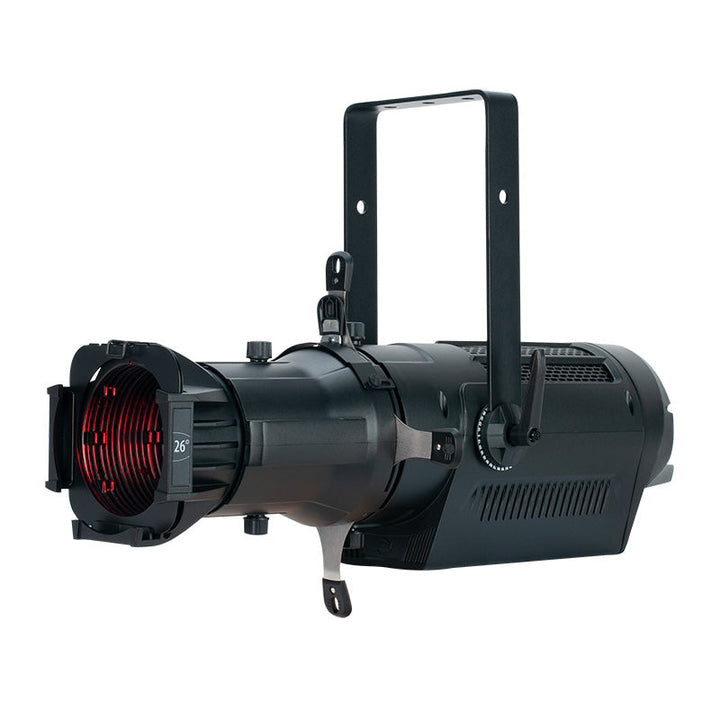

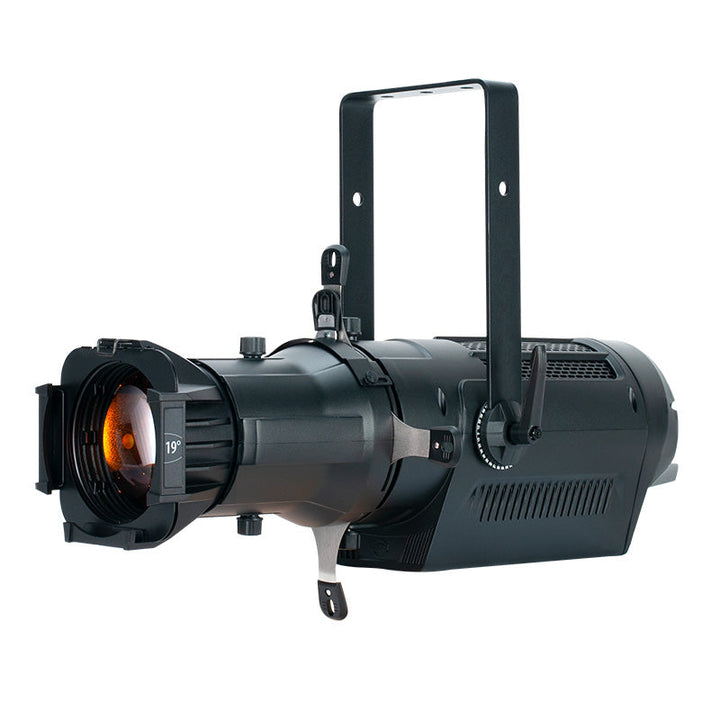

Ellipsoidal Fixture with 250W RGBWAL LED

Encore Profile Pro Color

Available now from ADJ USA The Encore Profile Pro Color Ellipsoidal features a 250W RGBWAL (Red, Green, Blue, White, Amber, Lime) LED engine, >90CRI with 14°, 19°, 26°, 36°, and 50° interchangeable high definition lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, dimming curves and dimming modes, flicker free operation for TV and FILM, adjustable refresh rate frequency, locking 5-pin XLR In/Out connectors and Locking Power Input, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (AC100-240v).

The Encore Profile Pro Color has an independent dynamic white fader feature that achieves white color temperatures from 2400K to 9000K.

Click here to read the Encore Profile Pro Series press release.

Specifications

SOURCE

• 250W RGBWAL (Red/Green/Blue/White/Amber/Lime) LED Engine
• 50,000 Hour Average LED Life*
• *LED Life may vary depending on several factors including but not limited to:
• Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• >90CRI 6,000 Total Lumens*
• (*with 26° lens)

EFFECTS

• Electronic Strobe and Dimming
• Variable Dimming Curves and Dimming Modes
• Independent dynamic white fader feature that creates tunable white color temperatures from 2400K to 9000K

GOBOS

• Supports “B” Size Metal, HT Transparency Gobos
• GOBO Holder is included (See compatible Gobo Dimensions in Downloads section)

GOBOs are sold separately CONTROL / CONNECTIONS

• 6 DMX Channel Modes (2/4/6/13/14/16)
• Adjustable Refresh Rate (900-1500, 25,000 Hz)
• 4 Button Control Panel
• LED Menu Display
• Locking 5pin XLR Connector In/Out
• Locking Power Connector In/Out
• With Wired Digital Communication Network
• RDM (Remote Device Management)

SIZE / WEIGHT

• Length: 26.9” (688mm) (Lens In)
• Width: 11.375” (289mm)
• Vertical Height: 17.7” (450mm)
• Weight: 20.0 lbs. (9.1 kg)

ELECTRICAL / THERMAL

• Quiet Fan Cooling
• AC 100-240V - 47/63Hz
• 250W Max Power Consumption
• Power Linking: 3pcs Max @120V / 8pcs Max @240V
• 14° to 113°F (-10° to 45°C)

APPROVALS / RATINGS

• CE
• cETLus
• IP20

INCLUDED ITEMS

• (1) Locking Power Cable

OPTIONAL ACCESSORIES:

• EPP IRIS (EPP001)
• EP Lens 10 (10° High Definition Lens)
• EP Lens 14 (14° High Definition Lens)
• EP Lens 19 (19° High Definition Lens)
• EP Lens 26 (26° High Definition Lens)
• EP Lens 36 (36° High Definition Lens)
• EP Lens 50 (50° High Definition Lens)
• EP Lens 15-30Z (15° to 30° High Definition, Manual Zoom Lens)
• EP Lens 25-50Z (25° to 50° High Definition, Manual Zoom Lens)
• SIP064: 1.64ft. IP65 male to female twist lock power link cable
• SIP113: 3ft. IP65 male to female twist lock power link cable
• SIP126: 5ft. IP65 male to female twist lock power link cable
• SIP139: 10ft. IP65 male to female twist lock power link cable
• SIP152: 16ft. IP65 male to female twist lock power link cable
• SIP165: 25ft. IP65 male to female twist lock power link cable
• SIP178: 50ft. IP65 male to female twist lock power link cable
• SIP191: 100ft. IP65 male to female twist lock power link cable

Specifications and documentation subject to change without notice.
