Fresnel Fixture (8500K) with 400W RGBACL LED/Barn Door 7in

Encore FR Pro Color

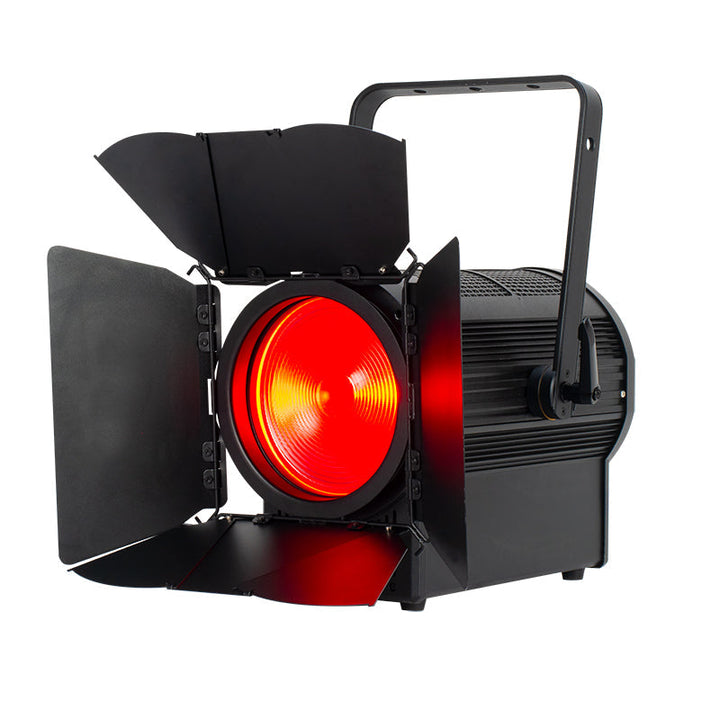

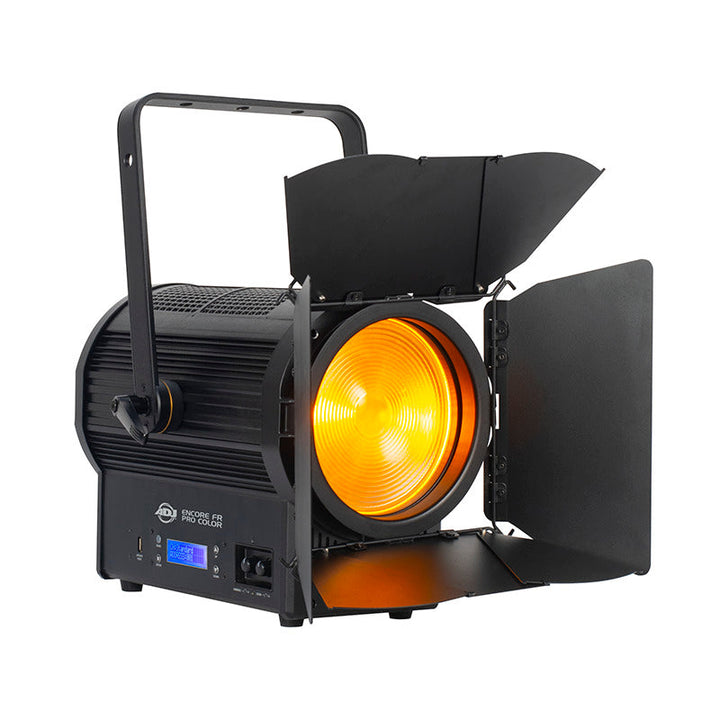

Available now from ADJ USA The ADJ Lighting Encore FR Pro Color is a professional grade Fresnel fixture with a 7-inch lens designed for key light, as a fill light and as a back light. It offers a full spectrum of colors with CMY Color Mixing DMX modes, and tunable white color temperatures from 2400K to 8500K. It’s powered by a 400W 6-IN-1 LED engine with red, green, blue, amber, cyan and lime LEDs.

The Encore FR Pro Color has a motorized zoom range of 9 ~ 37-degrees, a high CRI rating with an output of more than 11,000 Lumens. There are an abundant of on-board features such as 5 DMX control modes, 6 Dim Curves, preset color macros, and adjustable refresh rates.

The fixture has DMX-512 and RDM protocols, a USB service port, a 4-Button control panel LCD menu display, 3 & 5-pin DMX In/Out sockets and locking power In/Out to daisy chain power from one fixture to another.

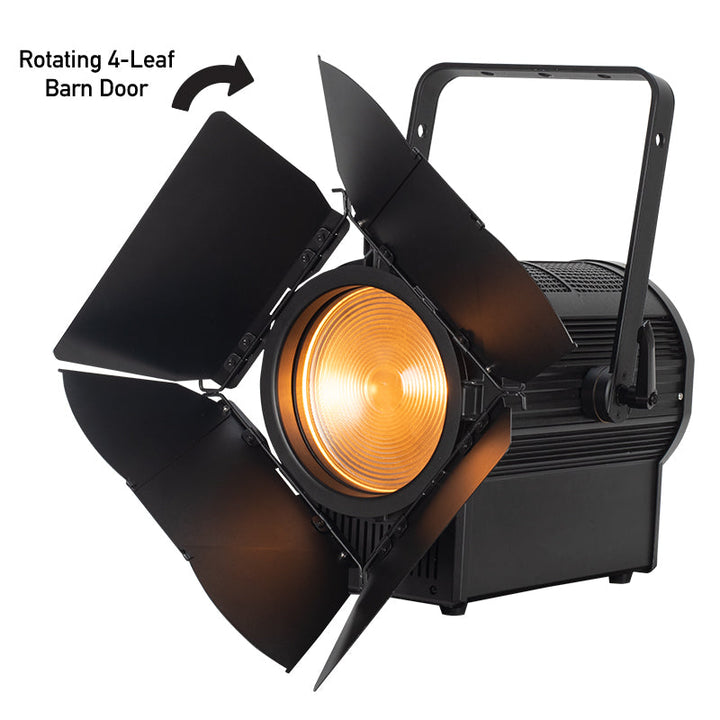

A rotating 4-leaf barn door, two safety cables and power cord are included with the fixture.

Click here to read the Encore FR Pro Color press release.

Specifications

SOURCE

• 400W 6-IN-1 LED (Red, Green, Blue, Amber, Cyan and Lime)
• 50,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA

• 9028 Total Stable Lumen Output (Full ON, Zoomed Out to Full)
• 9940 LUX, 923 FC @ 9.8’ (3m) (Zoomed In / Full ON)
• 2756 LUX, 256 FC @ 9.8’ (3m) (Zoom Out / Full ON)
• Beam Angle: 9° to 37.5°
• Max Field Angle: 49.8°
• Color Temperature: Tunable, 2400K to 8500K
• CRI: 97.8

COLOR:

• Individual RGBACL Red, Green, Blue, Amber, Cyan and Lime) Control
• Virtual Color Wheel Control
• Virtual CMY Control

EFFECTS

• Motorized Zoom
• Electronic Dimmer and Strobe (1-20Hz)
• Variable 16-bit Dimming Modes and Curves
• Virtual CMY Color Mixing DMX Control Modes
• Tunable White Color Temperature from 2400K to 8500K
• 62 Preset White Color Temp Macros (2400K to 8500K)
• 60 Preset Colors on Virtual Color Wheel
• 64 Preset RGBA Color Macros

CONTROL / CONNECTIONS

• Manual and DMX Controlled Dimmer and Shutter
• Dimmer and Zoom Rotary Dials
• (5) DMX Channel Modes (14 / 17 / 19 / 13 CMY / 19 CMY)
• Adjustable Refresh Rate (68 presets from 900 – 25,000Hz)
• 6 Preset Dim Modes (Standard, Stage, TV, Architectural, Theatre and Stage 2)
• Dim Speed Options (0.1s to 10s)
• 4 Dim Curves (Square, Linear, Inv. Squa and S. Curve)
• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)
• 3/5pin DMX Input and Output
• Locking Power Input and Output
• USB Service Port
• With Wired Digital Communication Network

SIZE / WEIGHT

• Length: 16.6” (421.9mm)
• Width: 14.18” (360.1mm)
• Vertical Height: 19.29” (490mm)
• Weight: 21.8 lbs. (9.9kg)

ELECTRICAL / THERMAL

• AC 100-240V - 50/60Hz
• 420W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• Power Linking: 2Pcs @ 110V / 5Pcs @ 240V

INCLUDED ITEMS

• Barn Doors
• Locking Power Cable
• Two (2) Safety Cables

APPROVALS / RATINGS

• CE | cETLus (Pending) | IP20

Specifications are subject to change without notice.
