PAR Fixture (Battery) - IP65 with 7 x 20W HEX RGBAL+UV LED

ElectraPix Par 7

The ElectraPix Par 7 LED Par is a cutting-edge wireless DMX lighting solution. Packed with advanced features, this fixture boasts seven 20-Watt Hex Color LED (RGBAL+UV), providing unparalleled control and creativity. Powered by either its built-in Lithium-ion rechargeable battery or wall outlets, battery operation can be selected by the user for durations ranging from 5 to 20 hours.

With individual pixel control, built-in foreground and background LED programs, and a variable white color temperature range, the ElectraPix Par 7 ensures dynamic lighting possibilities. Its color-calibrated LEDs, user-selectable dim modes, and electronic strobe/dimming enhance versatility.

Designed for adaptability, the IP65-Rated housing, OLED digital display, L Track system, and adjustable feet make installation and customization a breeze. The fixture's control options include DMX512, Aria X2 Wireless management system, Bluetooth, RDM compatibility, and an included UCIR24 wireless remote.

The ElectraPix Par 7 guarantees reliability with certifications such as CE, FCC, and pending cETLus, while its IP65-Rating ensures durability in various environments. Included accessories like the outdoor locking power cable and UCIR24 remote, along with optional add-ons, make this fixture a comprehensive lighting solution for professionals. Elevate your lighting design with the ElectraPix Par 7, where innovation meets performance.

Click here to read the ElectraPix Series press release.

Specifications

• 7 Pixel, Hex Color LED (RGBAL+UV) LED Par
  Built-in Lithium-ion rechargeable battery or Wall Powered
  Battery operation can be selected by the user for durations ranging from 5 to 20 hours
  Individual Pixel Control
  Built-In Foreground LED Programs
  Built-In Background LED Programs
  Variable White Color Temperature Control (2,700K ~ 9,900K)
  English Spanish User Menu
  Built-In Alarm
  Color Calibrated LED's
  User Selectable LED Refresh Rates (900Hz ~ 25K)
  6 User Selectable Dim Modes
  4 User Selectable Dim Curves
  Electronic Strobe (0.3Hz ~ 11Hz)
  Electronic Dimming
• Source:
• (7) 20W Hex Color RGBAL+UV Foreground LEDs
• (29) 0.2W RGB Background LEDs
• 50,000 Hour Average Life*
• *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• Optical:
• 2,300K ~ 9,900K White Color Temperature Range
• 17° Beam Angle
• Physical:
• IP65 Housing
• OLED Digital display
• L Track system for locking accessories / rigging
• Gel Frame Holder
• Adjustable, hanging / kick stand bracket
• Control:
• DMX512
• Aria X2 Wireless Management / DMX System
• Bluetooth
• RDM and RDM Net Compatible
• IR (Includes UCIR24 wireless remote)
• (9) DMX Channel Modes (5, 6, 9, 13, 22, 24, 42, 45 60 Channel modes)
• On-board Manual Control Mode
• Primary / Secondary Mode
• Connections:
• 5pin XLR Outdoor DMX In/Out Sockets (Must be used with STRxxx, 5pin DMX cables to create IP65 seal)
• Outdoor Locking Power Sockets
• Battery Charging Socket
• Dimensions Weight:
• Length: 12.1” (308mm) Width: 10.0” (255mm) Height: 7.5” (190mm)
• Weight: 15.9 lbs. (7.2 kg)
• Power:
• AC100-240V/50Hz-60Hz Input
• 60W Power Consumption
• Link 15 pieces @120VAC or 28 pieces @ 230VAC
• Battery:
• Rechargeable Lithium-ion
• Battery Capacity: 7,000mAh
• Battery Voltage: 22.2V
• Charge Time: 6 Hours (To Full)
• Battery operation can be selected by the user for durations ranging from 5 to 20 hours. 5 Hour duration will operate at Full Output when battery is fully charged
• Battery Cycles: 500
• Thermal:
• Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
• Storage Temperature: -22°F to 113°F (-30°C to 45°C)
• Certifications IP Rating:
• CE
• cETLus (Control # 4002034)
• FCC
• IP65
• Included Accessories:
• (1) Outdoor Locking Power Cable
• (1) Floor / Mounting Bracket
• (1) UCIR24 Remote
• (1) Gel Frame
• (1) 20° Diffusion Filter
• Optional Accessories:
• LTrack A2 (LTrack Adapter Only)
• LTrack CA2 (LTrack Adapter with Narrow Clamp)

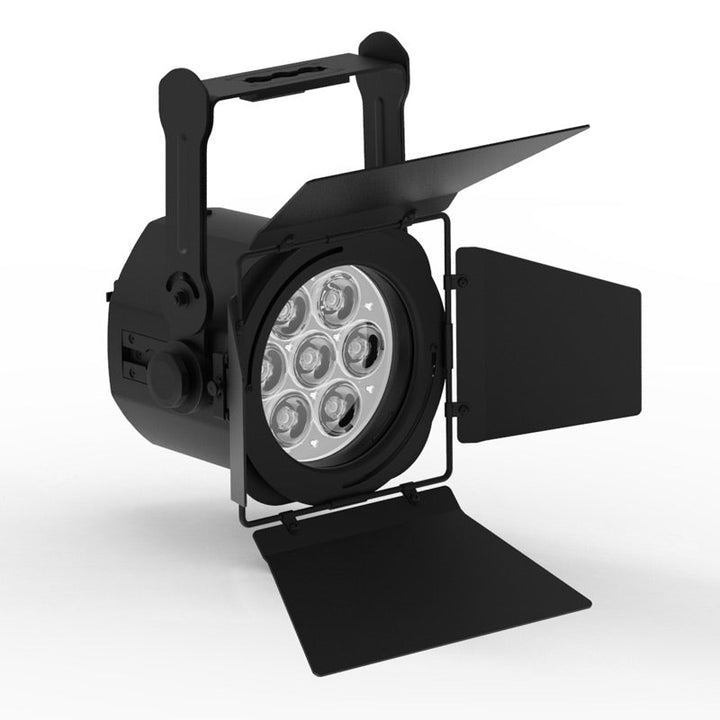

• ELP12IPBDA (Barn Door and Gel Frame Assembly, Sku: ELP404)
• ELPIX7L55: 55° diffusion filter for the ElectraPix Par 7
• ELPIX7L40: 40° diffusion filter for the ElectraPix Par 7
• ELPIX7L30: 30° diffusion filter for the ElectraPix Par 7
• ELPIX7L20: 20° diffusion filter for the ElectraPix Par 7
• ELPIX7L30X60: 30x60° linear filter for the ElectraPix Par 7
• ELPIX7L15X60: 15x60° linear filter for the ElectraPix Par 7
• ELPIX7L10X60: 10x60° linear filter for the ElectraPix Par 7
• ELPIX7L10X40: 10x40° linear filter for the ElectraPix Par 7
• EPIX P7 IPCB: replacement charging base and power supply
• Specifications and documentation subject to change without notice.
