Description
Data Distro 6

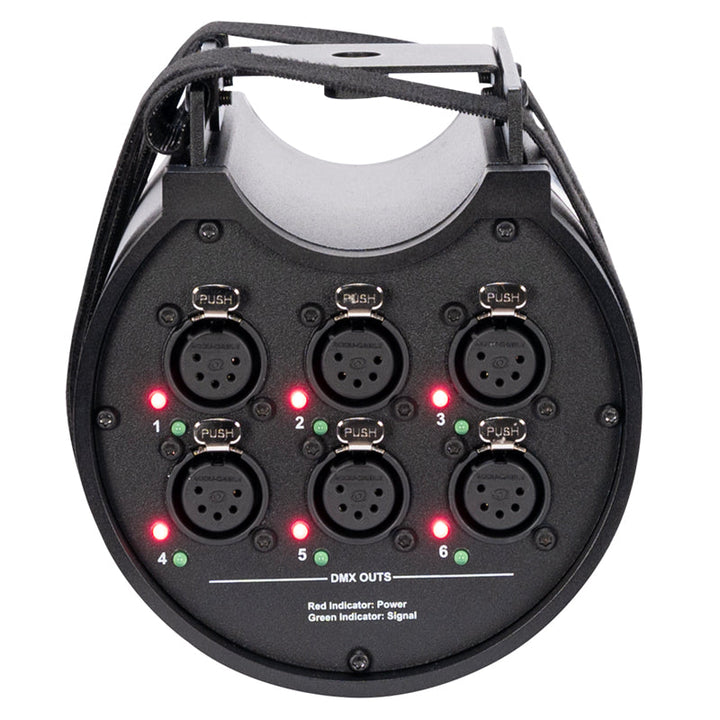

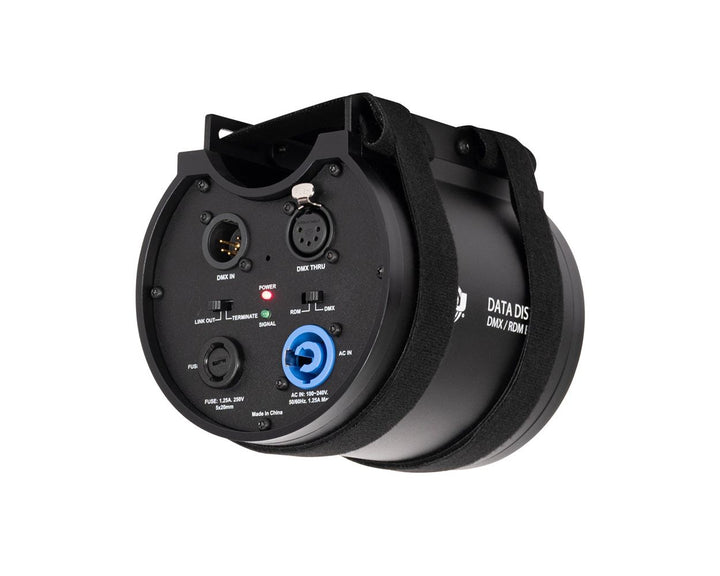

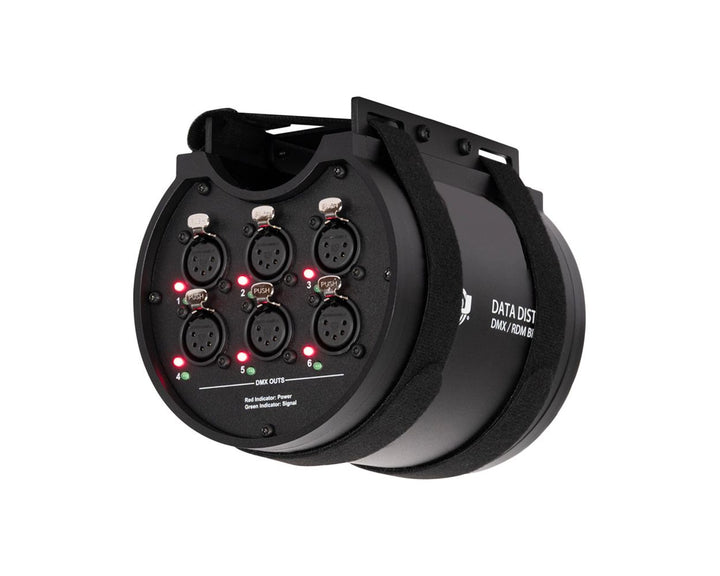

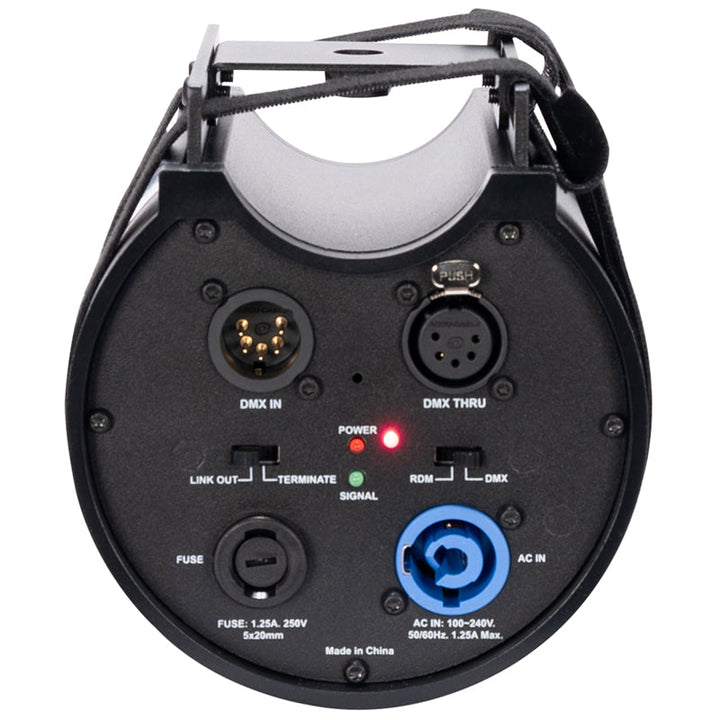

AVAILABLE NOW FROM ADJ USAThe ADJ Lighting Data Distro 6 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient hanging with 1 Truss Mount featuring two Velcro Straps or M10 Screw Clamp (clamp not included). Its robust physical configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, and 6x indoor 5-pin XLR outputs. Equipped with a Link Out Termination Switch and a DMX/RDM Protocol Switch, it also features an indoor locking power socket for added security.
Click here to read the Data Distro 6 press release.
Specifications
Protocols:- DMX512
- RDM
- DMX512

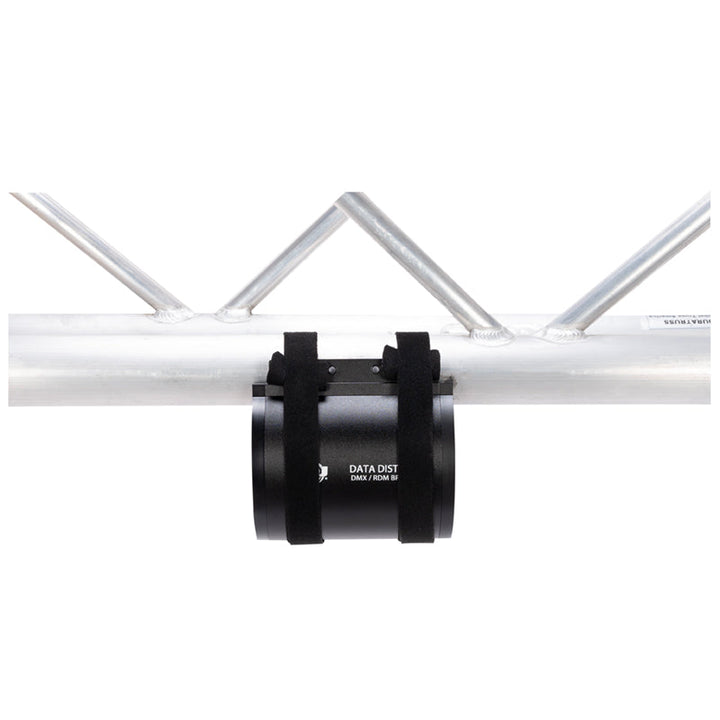

- 1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
- 1x Indoor 5pin XLR Input
- 1x Indoor 5pin XLR Thru
- 6x Indoor 5pin XLR Outputs
- Link Out / Termination Switch
- DMX / RDM Protocol Switch
- Indoor locking power socket
- 1 Truss Mount with Velcro Straps or M10 Screw Clamp (Clamp Not Included)
- Length: 4.73" (120mm)
- Width: 5.43" (137.75mm)
- Height: 5.10" (129.55mm)
- Weight: 1.83lbs. (0.83kg)
- Length: 4.73" (120mm)
- AC Input: 100-240V 50/60Hz
- Power Consumption: 2.7W @ 120V and 2.9W @ 230V
- Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
- AC Input: 100-240V 50/60Hz
- Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
- Humidity: <75%
- Storage Temperature: 77°F (25°C)
- Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)
- CE
- cETLus (Control # 5014475)
- UKCA
- FCC
- IP20
- CE
