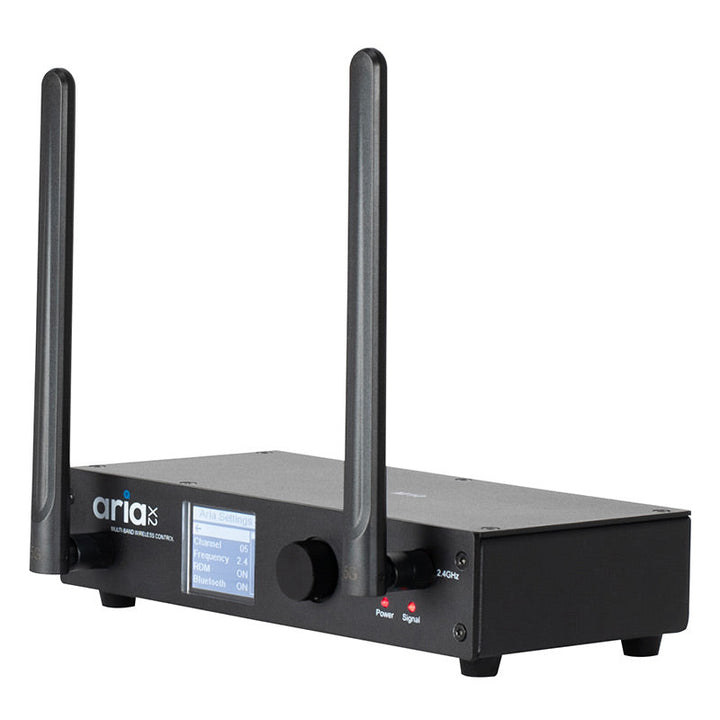

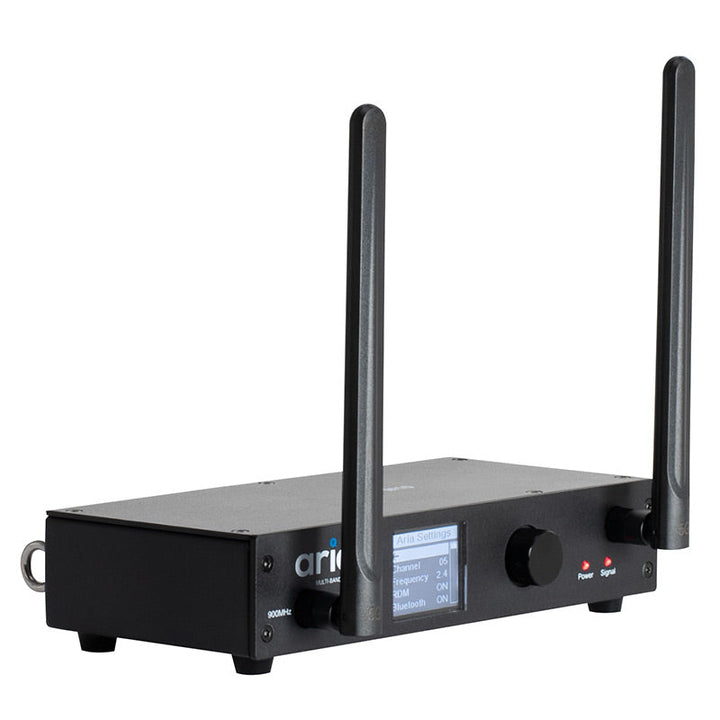

Single Universe Wireless Transceiver (Indoor Use)

Aria X2 Transceiver

Introducing the Aria Wireless Management System for Advanced Lighting Control at the Shop or in the Show.

Aria modules boast the capability to transmit and receive signals on standard 802.15.4 channels, both in the 2.4GHz and 915MHz (U.S) or 2.4GHz, 868MHz or 863MHz (Europe) spectrums. This agility guarantees top-notch network performance even in crowded environments. Units can seamlessly switch between spectrums, ensuring network reliability.

Aria simplifies device setup with BLE, enabling you to configure settings directly from the fixture menu. BLE also offers auxiliary functions such as individual DMX channel adjustments, opening doors to creative control possibilities.

Keep your Aria system up-to-date with Over-The-Air (OTA) updates for Aria firmware, fixture firmware, and fixture menus. A cloud repository stores these updates, and the service app efficiently retrieves them, with future multi-hop DMX support enabling mesh network updates.

Aria’s robust foundation lies in its Wireless Mesh technology, featuring a versatile multi-hop DMX protocol. It adapts to various settings and use cases, with early configurations requiring minimal user intervention for optimal performance. Future releases will simplify network configuration through internal metrics, ensuring low latency and reduced collisions (available: TBA).

Aria modules will implement a frequency hopping scheme, enhancing network reliability and reducing user configuration requirements. This innovation optimizes spectrum utilization, providing a seamless and efficient lighting experience (available: TBA).

Specifications

• Features:

  • Single DMX Universe

  • Sub-GHz, 2.4 GHz and Bluetooth
  • Configuration via Aria X2 BLE app or front panel
  • Wireless to DMX or DMX to Wireless

• • DMX

  • RDM (Planned for future software release)
  • Proprietary 802.15.4

  • Aria X2 Mesh Protocol (Planned for future software release)
  • Bluetooth 4.2 (BLE)

  • Aria X2 Serial Protocol

  • This is our proprietary serial protocol for communicating with a variety of fixtures.

• • Frequency range

  • Bluetooth: 2402-2480 MHz
  • Zigbee: 2405-2480 MHz (EU)
  • Sub-GHz: 906-924 MHz (US)
  • Radio module: Aria X2

  • Interference mitigation

  • CSMA
  • Adaptive frequency hopping (on the roadmap)
  • OTA updates

• • Health

  • EN IEC 62311:2020
  • EN50665:2017
  • BS EN IEC 62311:2020
  • BS EN 50665:2017
  • Safety

  • EN IEC 62368-1: 2020+A11:2020
  • BS EN IEC 62368-1: 2020+A11:2020
  • EMC

  • ETSI EN 301 489-1 V2.2.3 (2019-11)
  • ETSI EN 301 489-3 V2.3.2 (2023-01)
  • ETSI EN 301 489-17 V3.2.4 (2020-09)
  • EN 55032:2015/A1:2020
  • EN 55035:2017/A11:2020
  • EN 61000-3-3:2013/A2:2021
  • EN IEC 61000-3-2:2019/A1:2021
  • BS EN 55032:2015/A1:2020
  • BS EN 55035:2017/A11:2020
  • BS EN 61000-3-3:2013/A2:2021
  • BS EN IEC 61000-3-2:2019/A1:2021
  • Radio

  • EN 300 220-1 V 3.1.1 (2017-02)
  • EN 300 220-2 V 3.2.1 (2018-06)
  • ETSI EN 300 328 V2.2.2 (2019-07)

• • Antenna: 5G JT SMA

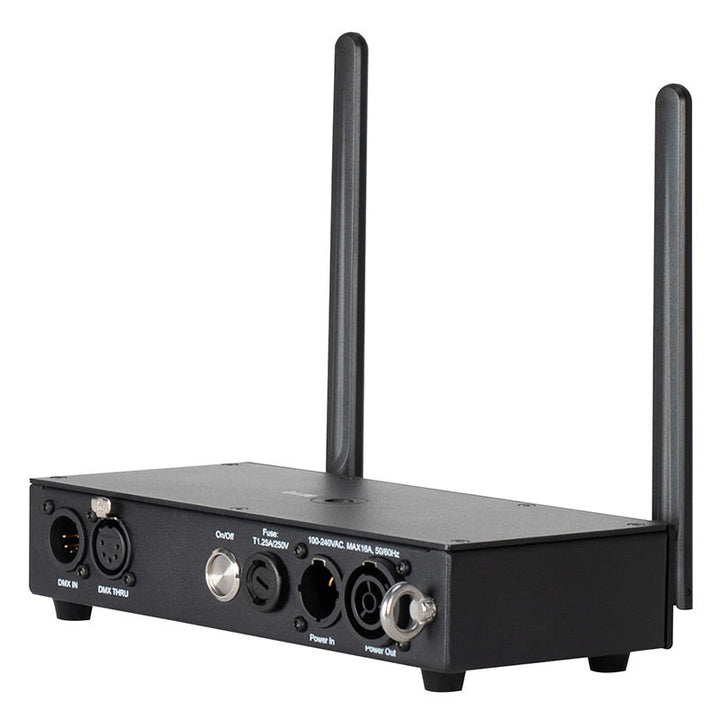

  • DMX: 5-pin XLR Input and Output

  • DC: 2.5mm/5.5mm Barrel connector

  • IP65 Locking Power Input and Output


• • AC100-240V 50/60Hz

  • Power Consumption: 2W

  • Power Fuse: T1.25A/250V. (5 x 20mm)

• • IP20 Aluminum / Metal enclosure

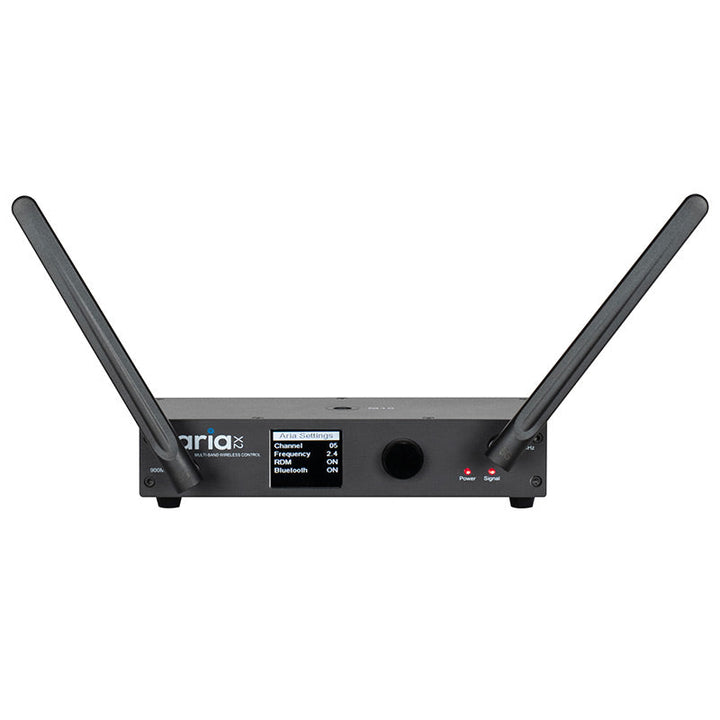

  • Front panel digital screen and rotary knob

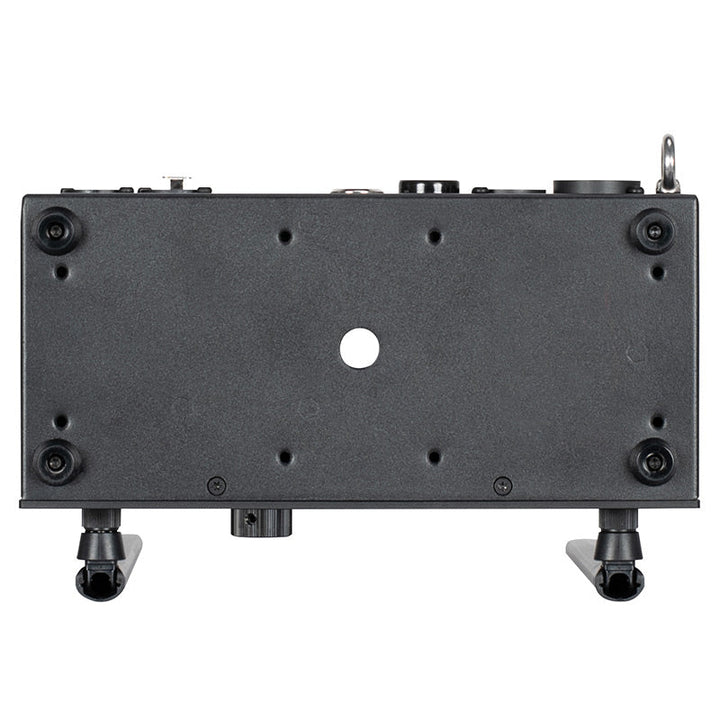

  • M10 and M12 Threads

  • Safety Eyelet
  • Max ambient operating temp: 113°F (45°C)
  • Max operating humidity: <75%
  • Storage temperature: 77°F (25°C)
  • Rack and wall mount accessories


• • Length: 6.46" (163.95mm)
  • Width: 8.48" (215.30mm)
  • Height: 1.66" (42mm)

  • 2.7lbs (1.23kgs.)
