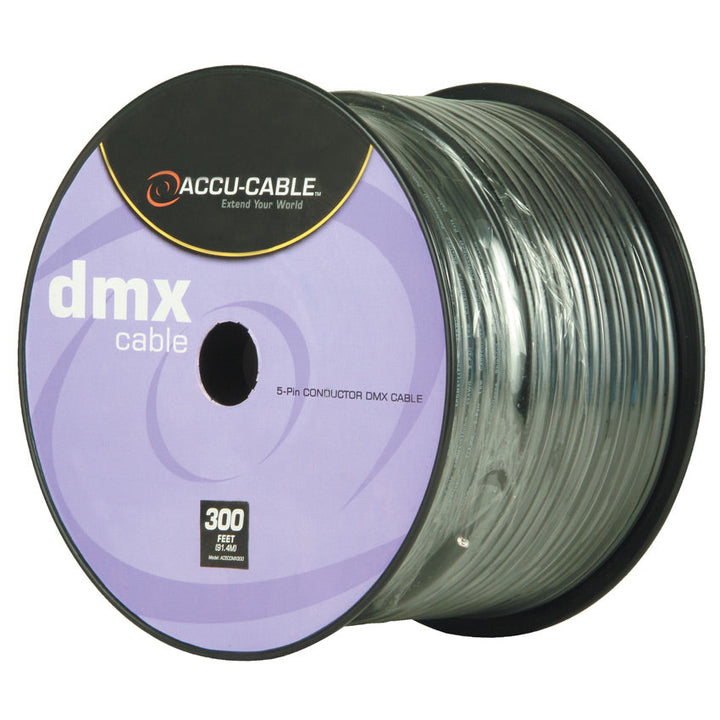

5-Pin DMX Cable - 300ft Spool
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
AC5CDMX300
Conductor: Number of Pairs: 2Total Number of Conductors: 4 (plus 1 ground)AWG: 22Stranding: 0.15 x 19Conductor Diameter: .0354"Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:Lay Length: 1.1"Direction: Left Hand LayTwists: 10.9 per foot Inner Jacket:Inner Jacket Material: PE- PolyethyleneInner Jacket Diameter: .055"Pair Color Code: Green/Black/Red/White Outer Shield:Outer Shield Trade Name: Duofoil®Outer Shield Type: Tape/Braid Outer Shield Material:Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:Overall Nominal Diameter: .295" Mechanical Characteristics:Operating Temperature Range: (-30 degrees C To + 75 degrees C)Bulk Cable Weight: 50 lbs/1000Minimum Bend Radius (Install): 3.5"Maximum Recommended Pull Tension: 22 lbs. Electrical Characteristics:Nominal Characteristic Impedence: 110 OhmsNominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f tNominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ftNominal Velocity of Propagation: 76%Nominal Delay: 1.6 Nanoseconds per footNominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ftIndividual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ftNominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
