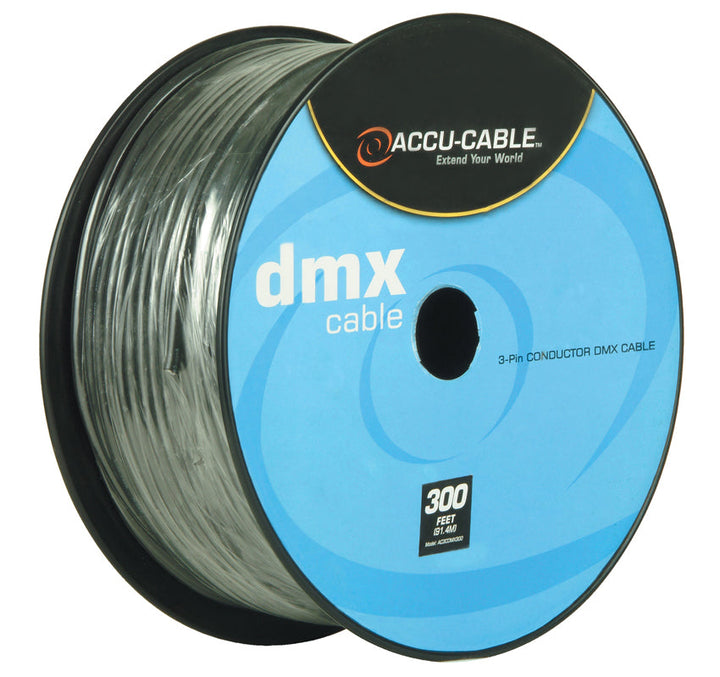

3-Pin DMX Cable - 300ft Spool
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
AC3CDMX300
Conductor: Number of Pairs: 1
Total Number of Conductors: 2
AWG: 22
Stranding: 0.15 x 19
Conductor Diameter: .0354"
Conduct or Material: TC-Tinned Copper Insulation: Insulation Material PE Polyethylene Lay Length:
Lay Length: 2.5"
Direction: Left Hand Lay
Twists: 4.8 per foot Inner Jacket:
Inner Jacket Material: PE- Polyethylene
Inner Jacket Diameter: .055"
Pair Color Code: Black/White Outer Shield:
Outer Shield Trade Name: Duofoil®
Outer Shield Type: Tape/Braid Outer Shield Material:
Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100
Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 Outer Jacket:
Outer Jacket Material: PVC-Polyvinyl Chloride Overall Nominal Diameter:
Overall Nominal Diameter: .229" Mechanical Characteristics:
Operating Temperature Range: (-30 degrees C To + 75 degrees C)
Bulk Cable Weight: 31 lbs/1000
Minimum Bend Radius (Install): 3.2"
Maximum Recommended Pull Tension: 72 lbs. Electrical Characteristics:
Nominal Characteristic Impedence: 110 Ohms
Nominal Capacitance Conductor to Conductor @ 1KHz: 12.8 pF/f t
Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft
Nominal Velocity of Propagation: 66%
Nominal Delay: 1.6 Nanoseconds per foot
Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft
Nominal Outer Shield D C Resistance @ 20 degrees C: 3.4 Ohms/ 1000 ft
Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH z) dB/100 ft
Maximum Recommended Current: 2.1 A mps per conductor @ 25 degree C
Specifications
• Dimensions: 9.75" x 9.75" x 4.25" / 248x248x108mm- Weight: 8.5 lbs. / 3.85 kg.
