Description
40 HEX Panel IP

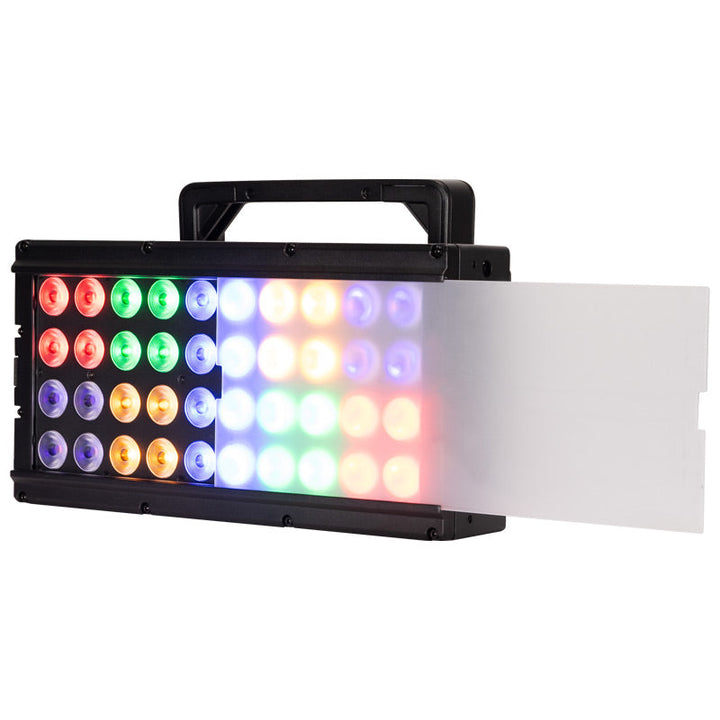

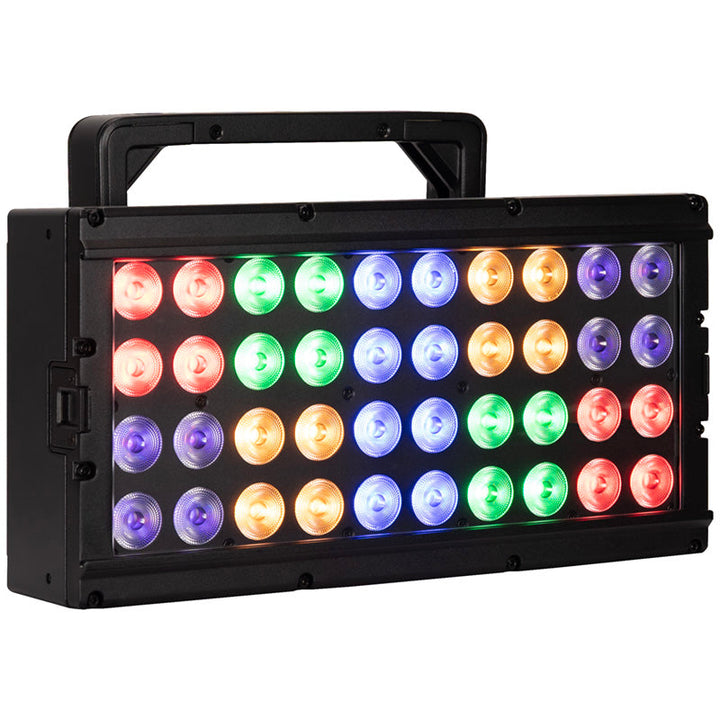

40 HEX Panel IP is a versatile, IP65-rated fixture designed for both indoor and outdoor applications as a wash light, blinder, or color strobe. It is equipped with 40x 20W HEX LEDs (6-in-1: RGBAL+UV) and features 10 independently controllable sections with Pixel Zone Control. Its durable all-metal, black housing is IP65-rated, offering protection against dust, sand, moisture, and liquids. There is a channel system on the front of the unit that allows for light shaping filters to be easily and conveniently added to the fixture.

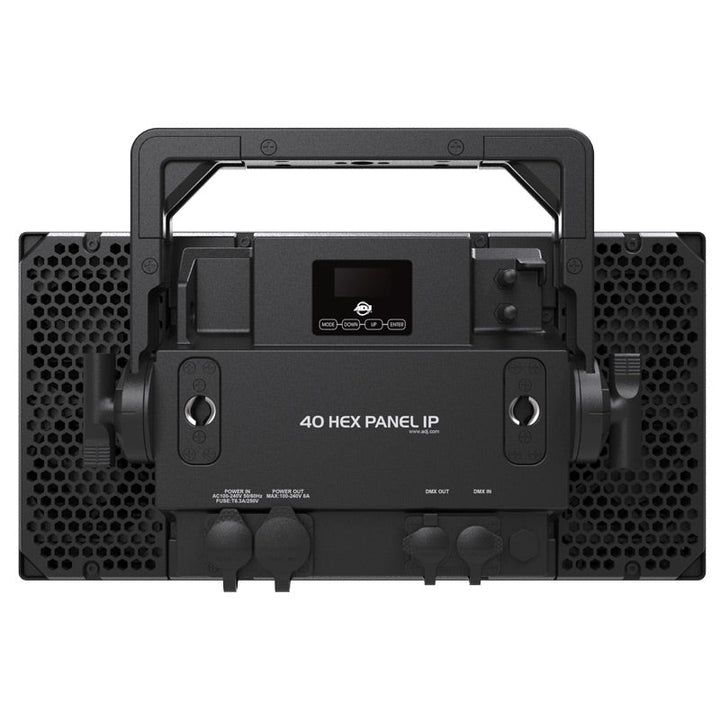

The rear panel includes IP65-rated 5-pin DMX In/Out and power locking In/Out connections, enabling seamless daisy chaining of power and data. Both the DMX and power ports are shielded with rubber protective covers. An intuitive OLED display with touch-sensitive buttons ensures easy access to the fixture's functions.
Perfect for film and broadcast, the 40 HEX Panel IP is flicker-free and offers various DMX control modes, dimming options, and LED refresh rate settings. Aria X2 wireless management system is built-in to the fixture for over the air firmware/software updates.
Specifications
Light Source:- • LED: 40x 20W HEX (6-In-1) RGBAL+UV LEDs (50,000 hr.)
- • Beam Angle: X = 28.61°, Y = 23.72°
- • Field Angle: X = 50.82°, Y = 44.95°
- • Lumens: 19,590
- Features:
- • IP65 rated – protects from dust, sand, moister, water
- • Aria X2 Management System
- • All metal construction with black housing
- • Includes heavy duty bracket
- • Flicker free for film and broadcast
- • Linear variable white temperature control
- Construction:
- • Display: OLED display with function buttons
- • All Metal Heavy-Duty Housing: Built To Last In Outdoor or Touring Applications
- Control:
- • 24 DMX control modes; 6ch 1G / 12Ch 1G / 15Ch 1G / 16Ch 1G / 20Ch 1G / 24Ch 1G / 12Ch 2G / 20Ch 2G 24Ch 2G / 27Ch 2G / 29Ch 2G / 36Ch 2G / 30Ch 5G / 40Ch 5 G / 60Ch 5G / 63Ch 5G / 68Ch 5G / 72Ch 5G / 60Ch 10G / 70Ch 10G / 120Ch 10G / 123Ch 10G / 128Ch 10G 132Ch 10G modes
- • 4 Control Groups: 1 / 2 / 5 10 Groups
- • 0-100% Dimming + smooth 16-bit Dimming
- • 5 Dimming Curve Modes
- • Control Mode: DMX512, RDM (Remote Device Management)
- • LED Refresh Rate: Multiple settings
- • With Wired Digital Communication Network
- Connections:
- • Data: IP65 Locking 5-pin DMX In/Out
- • Power: IP65 Locking Power In/Out
- Electrical:
- • 100-240V 50Hz/60Hz (Auto Sensing)
- • Max Power Consumption: 513W @120V; 492W @220V
- • Max Power Link: 1pcs @120V; 4pcs @230V
- • Fuse Protected: T4A/250V Glass Fuse (5*20MM)
- Dimensions / Weight:
- • Length: 16.42" (417mm)
- • Width: 11.7" (296.8mm)
- • Height: 8.35” (212mm)
- • Weight: 24.58 (11.15kg)
- What’s Included:
- • 1 x IP65 Locking Power Cable
- • 1 x Frost Filter
- • 1 x Safety Cable
- Optional Accessories:
- • 180mm Omega Bracket
- • JPFXBLKF (Sku: JPF001 - Black Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
- • JPFX1X60LF (Sku: JPF014 - 1x60° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
- • JPFX60X1LF (Sku: JPF027 - 60X1° Linear Effect Filter for Jolt Panel FX, Jolt Panel FXIP and 40 HEX Panel IP)
- • JPFXGS (Sku: JPF040 - Glare Shield for Jolt Panel FX2, Jolt Panel FXIP and 40 Hex Panel FXIP)
- • JPFXBD (Sku: JPF053 - Barn Door for Jolt Panel FX2, Jolt Panel FXIP and 40 Hex Panel FXIP)
- Approvals and Ratings:
- • CE
- • cETLus (Pending)
- • IP65
- Specifications are subject to change without notice.
