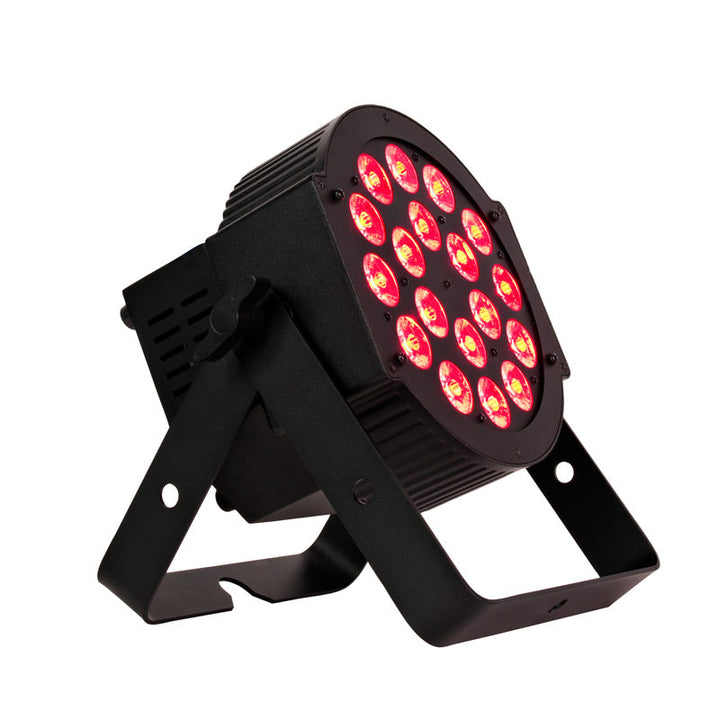

Low Profile PAR Fixture with 18 x 12W RGBWA+UV LED

18P Hex

Available now from ADJ USA

The ADJ 18P Hex is an all metal, powerful LED Par fixture with 18x 12-Watt, 6-IN-1 HEX LEDs. Produces wide washes with smooth color mixing from 63 built-in color macros utilizing red, green, blue, amber, white and UV LEDs. Not only is this LED Par great for lighting stages, but with its patent pending, intelligently designed, power and DMX connectors, it’s great for uplighting large venue.

18P HEX professional features include: 4 DMX modes (6, 7, 8 and 12), 5 operational modes, 5 dimming curves, flicker free operation and a 4-Button DMX menu with digital display. Daisy-chain up to 4 units (110V) or 8 units (240V) together via the fixtures built-in locking power in and out connections.

The 18P HEX is compatible with the Dotz Par RF easy-to-use wireless RF remote (Sold Separately). Alternatively the fixture may be operated via a DMX controller or the units built-in programs.  It comes with a metal gel frame in which a beam diffuser (sold separately) may be used to soften the beam.Learn more about the 18P HEX in our product spotlight article: CLICK HERE

Specifications

• Features:
• • 18x 12-Watt Hex LEDs
• • 63 built-iin Color Macros
• • Locking power in and out connections

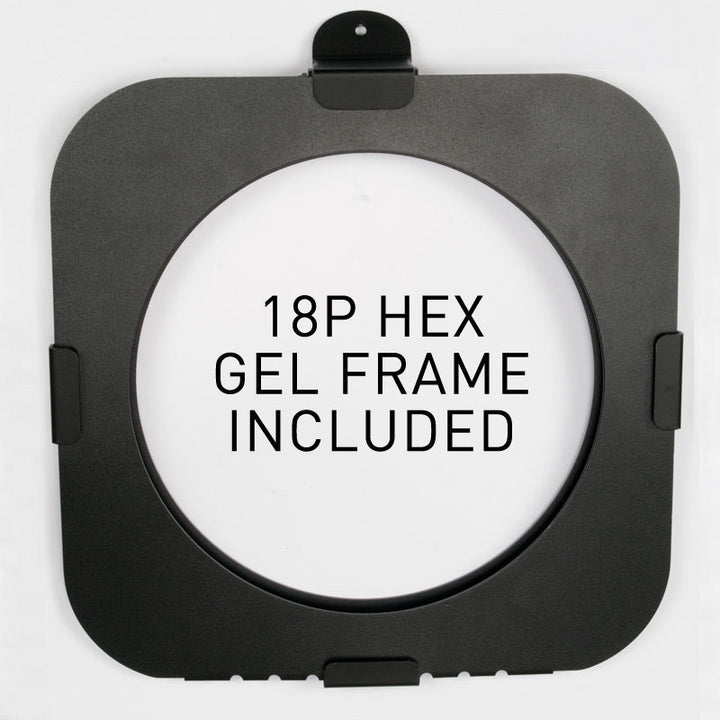

• • Heavy duty metal construction with Gel Frame included
• • ETL Approved
• • With Wired Digital Communication Network
• Optical:
• • Light Source: 18 x 12-Watt Hex (RGBAW + UV) LEDs
• • LED Life Expectancy: 50,000 Hrs
• • Refresh Rate: 3.6KHz
• • 25-degree beam angle
• Technical Features:
• • 63 Built In Color Macros
• • 5 Operational Modes: Manual Color; Color Fade; Auto Program; Sound Active, and DMX modes.
• • 4-button Digital Display for easy navigation
• • Electronic Dimming 0 – 100%
• • Flicker Free
• • Gel Frame Included
• • Includes a scissor yoke to be hung, or set on the ground

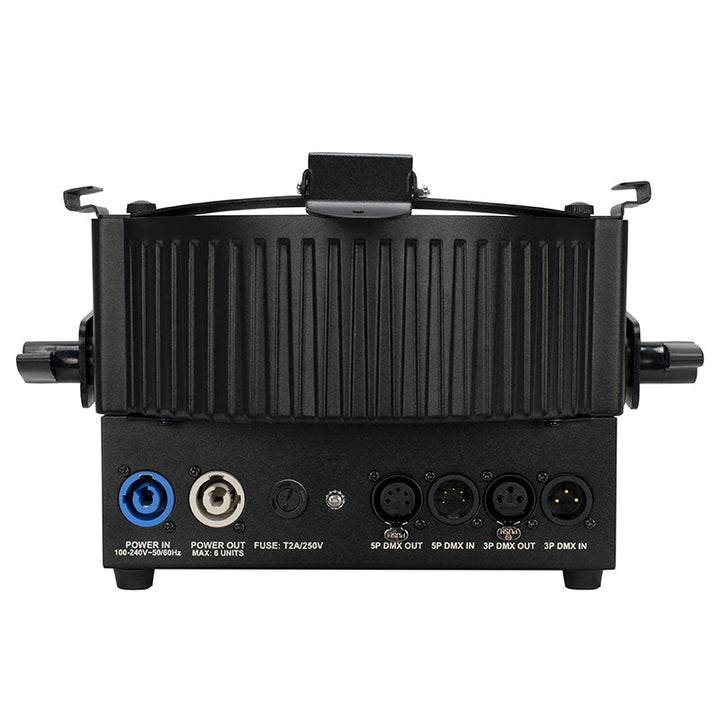

• Connections:
• • Power Input: Locking Power IN socket
• • Power Pass through: Locking Power OUT socket (Daisy chain up to 7 units @120V, 16 units @ 230V)
• • Control: 3-pin and 5pin In/Out DMX
• Control:
• • 4 DMX Channel Modes: 6, 7, 8 and 12
• • Compatible with Dotz Par RF (Sold Separately)
• • On Board control
• • With Wired Digital Communication Network
• • DMX, RDM (Remote Device Management)
• Electrical:
• • Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing)
• Physical:
• • Dimensions (LxWxH): 11.96” x 6.88” x 13” / 304 x 174.8 x 330.4mm
• • Weight: 12.9 lbs / 5.9 kg.
• • Metal Black Housing
• Certifications:
• • IP 30: Dry area, No liquids
• • cETLus Approved (Control #4010765)
• Whats Included:
• • (1) 1 Meter, Locking Power to Edison Cable
• • (1) Gel Frame
• • Owner’s Manual
• Optional Accessories:
• • Dotz Par RF (Remote Control)
