Description

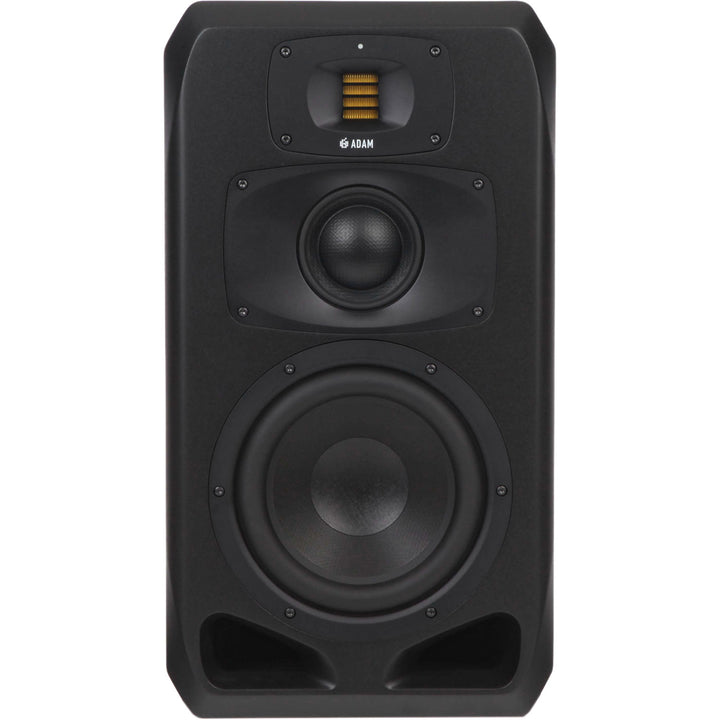

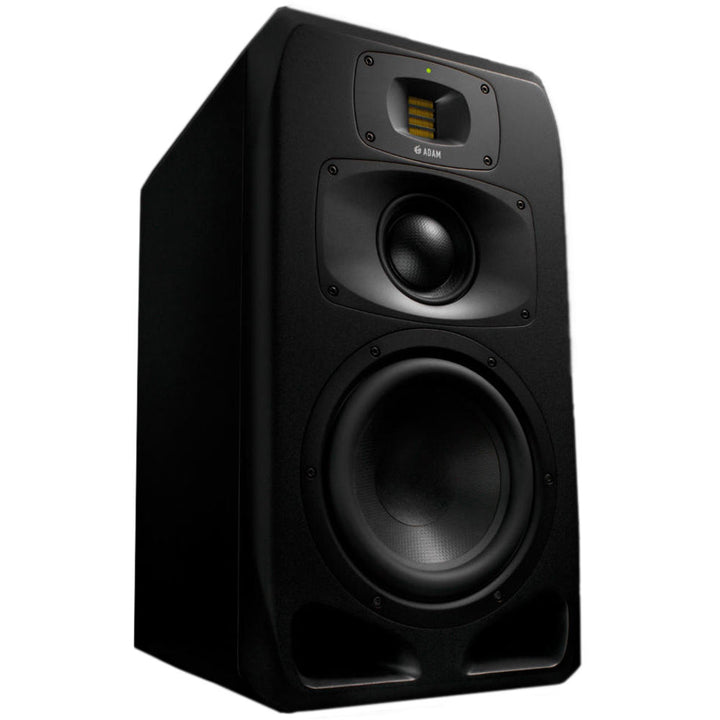

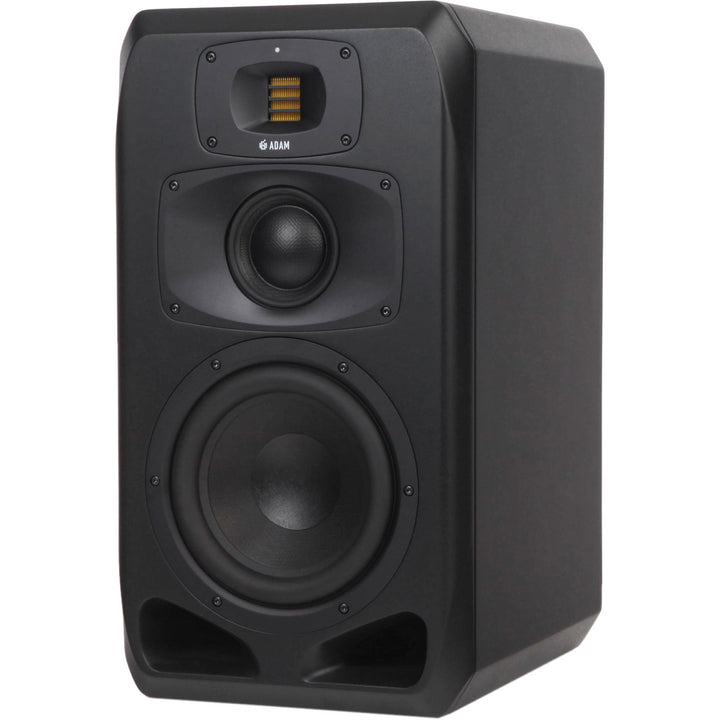

The ADAM Audio S3V is a 3-way vertical midfield reference monitor from the flagship S Series. A 9" HexaCone woofer, 4" DCH hybrid midrange driver, and handmade S-ART tweeter deliver 32 Hz to 50 kHz with up to 124 dB SPL per pair. Custom-developed in Berlin with no off-the-shelf speaker components, the S3V is built for medium-sized control rooms requiring precise, transparent monitoring.
Drivers & Amplification
- Woofer: 9" HexaCone
- Midrange: 4" DCH dome/cone hybrid, carbon composite
- Tweeter: S-ART folded ribbon (handmade in Berlin)
- LF amplifier: 500W Class D
- MF amplifier: 300W Class D
- HF amplifier: 50W Class A/B
- Max SPL: 124 dB per pair at 1m
DSP Engine

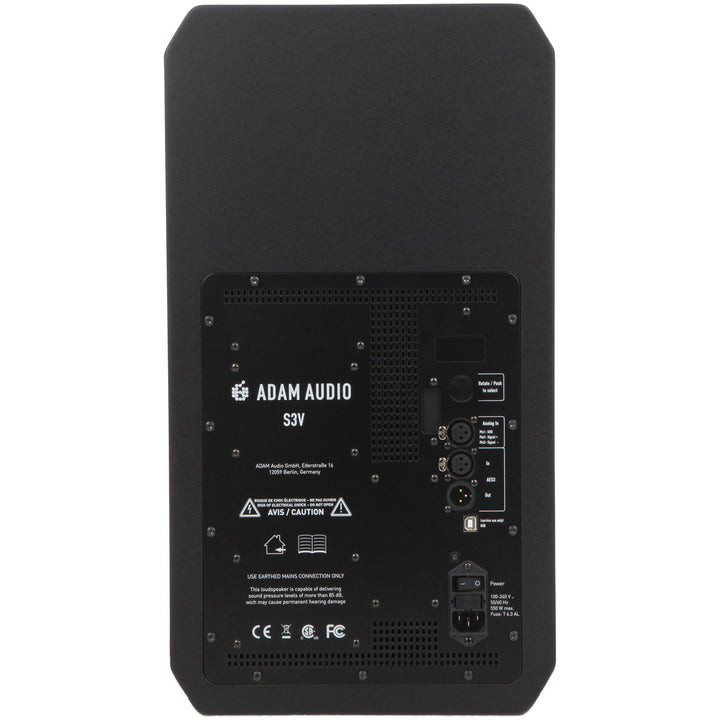

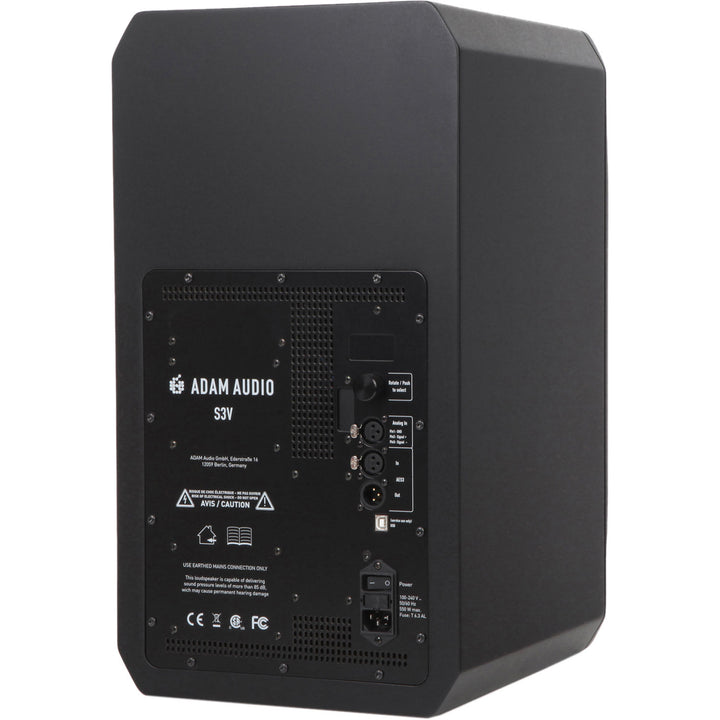

Rear-panel OLED display and rotary encoder for 6-band parametric EQ, high/low-pass filters, delay (up to 5 ms), and five storable presets. USB Type-A port for remote DSP access.
Connectivity
- Analog input: XLR balanced (48 kOhm, +24 dBu max)
- Digital input/output: AES3 via XLR
- USB: Type-A for remote DSP control
- Power: 100-240V, 50/60 Hz
Specifications
- Frequency response: 32 Hz to 50 kHz (-20 dB)
- Crossovers: 250 Hz, 3 kHz
- THD: 0.4% above 100 Hz
- Max power consumption: 550W
- Dimensions: 536 x 293 x 380 mm (21.1 x 11.5 x 15")
- Weight: 25 kg (55 lb)
- Warranty: 5 years (2 + 3 with registration)
