Description

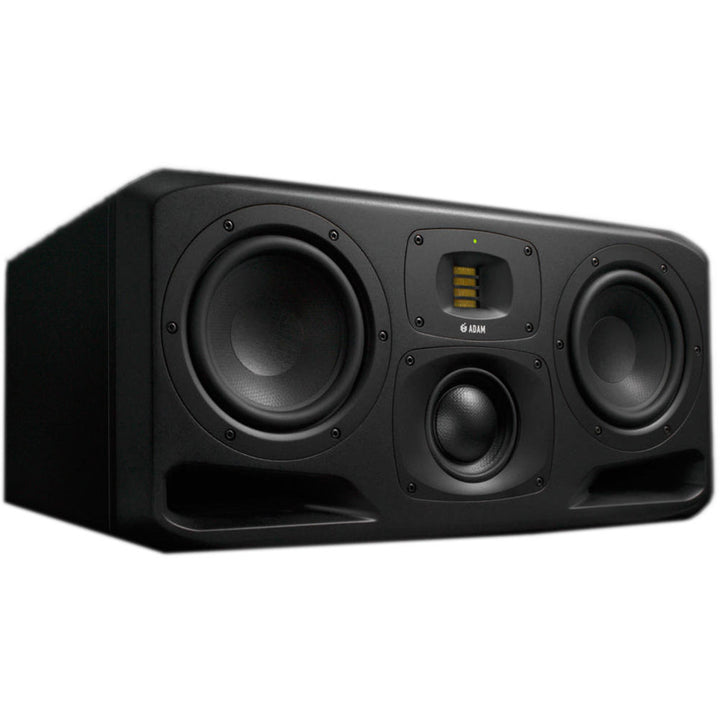

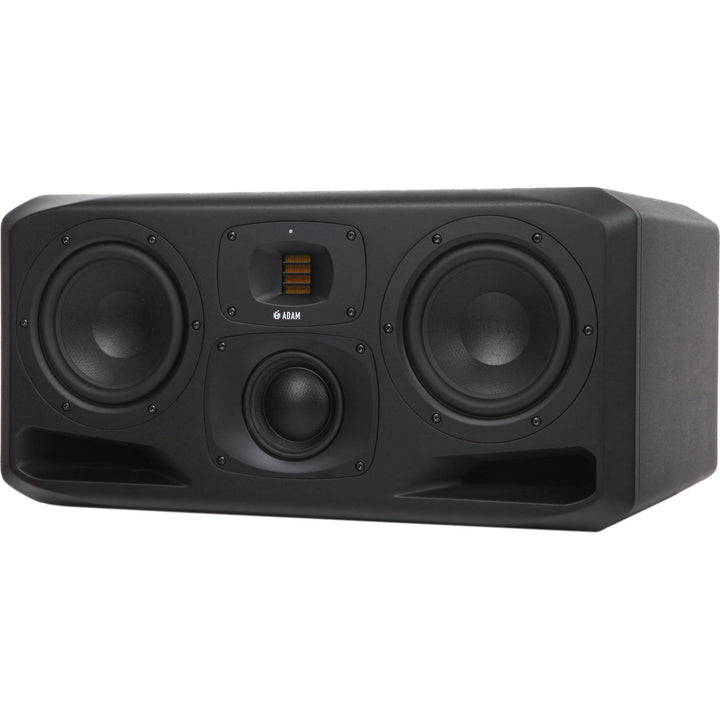

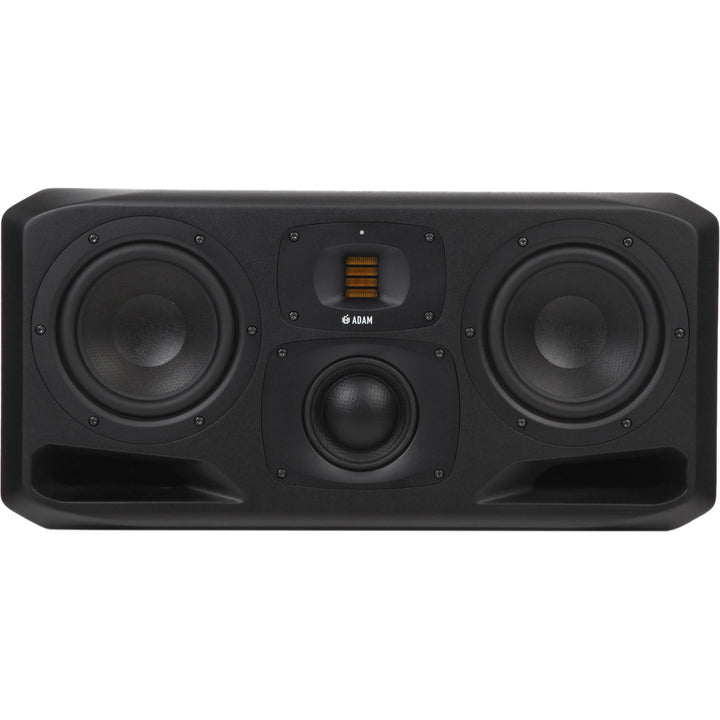

The ADAM Audio S3H is a 3-way horizontal midfield reference monitor from the flagship S Series, handmade in Berlin. Dual 7" HexaCone bass drivers, a 4" DCH dome/cone hybrid midrange, and the S-ART tweeter combine for full-range monitoring from 30 Hz to 50 kHz with up to 126 dB SPL per pair. The successor to ADAM's popular S3A and S3X-H.
Drivers & Amplification
- Woofers: 2x 7" HexaCone
- Midrange: 4" DCH dome/cone hybrid, carbon composite
- Tweeter: S-ART folded ribbon (handmade in Berlin)
- LF amplifier: 500W Class D
- MF amplifier: 300W Class D
- HF amplifier: 50W Class A/B
- Max SPL: 126 dB per pair at 1m
DSP Engine
Rear-panel OLED display with rotary encoder for 6-band parametric EQ, high/low-pass filters, delay (up to 5 ms), and five storable presets. USB Type-A port for remote computer access to all DSP settings.
Connectivity
- Analog input: XLR balanced (48 kOhm, +24 dBu max)
- Digital input/output: AES3 via XLR
- USB: Type-A for remote DSP control
- Power: 100-240V, 50/60 Hz
Specifications
- Frequency response: 30 Hz to 50 kHz (-20 dB)
- Crossovers: 250 Hz, 3 kHz
- THD: 0.4% above 100 Hz
- Max power consumption: 550W
- Dimensions: 280 x 585 x 380 mm (11 x 23 x 15")
- Weight: 26.6 kg (58.6 lb)
- Warranty: 5 years (2 + 3 with registration)
