ADAM Audio A8H 8" 3-Way Active Midfield Monitor (Right)
Channel
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

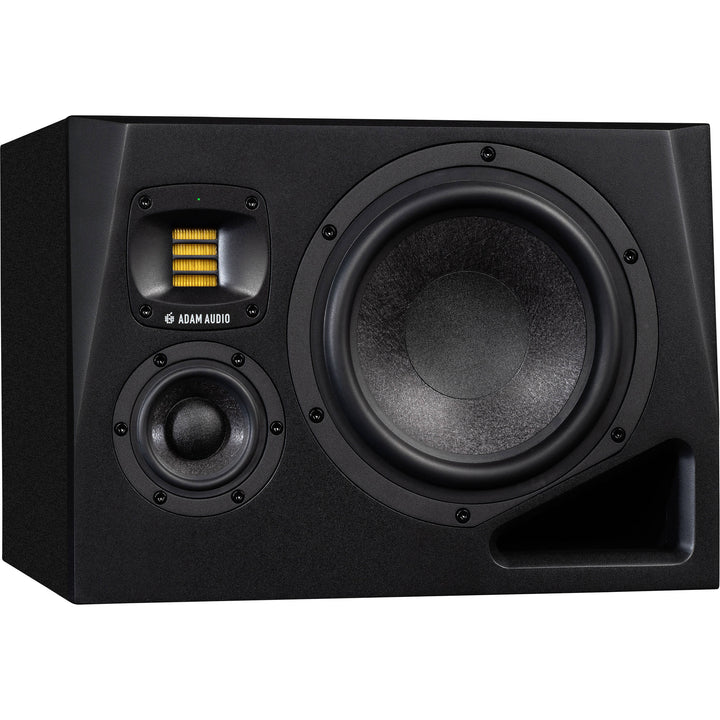

The ADAM Audio A8H (Right) is a 3-way horizontal midfield monitor with an 8" MLM woofer, dedicated MLM midrange driver, and handmade X-ART tweeter with HPS waveguide. The asymmetric cabinet design optimizes stereo imaging for the right channel position. Built for medium-to-large control rooms and critical listening environments where full-range accuracy and high SPL are essential.
Drivers & Amplification
- Woofer: 8" MLM cone
- Midrange: MLM driver
- Tweeter: X-ART folded ribbon with HPS waveguide (rotatable)
- Total amplifier power: 340W RMS (250W LF Class D + 70W MF Class A/B + 20W HF Class A/B)
DSP & Room Correction
Full A Series DSP platform with two factory voicings (UNR and Pure), four-band room adaptation EQ, and extended tuning via the free A Control software over Ethernet. Sonarworks SoundID Reference calibration profiles can be stored directly on the monitor's DSP.
Connectivity
- Analog input: XLR balanced
- Network: RJ45 Ethernet (OCA protocol)
- Power: 100-240V, 50/60 Hz (universal)
Specifications
- Configuration: Right channel (asymmetric cabinet)
- Frequency response: 32 Hz to 45 kHz (-6 dB)
- Crossover: 400 Hz, 3 kHz
- Cabinet: Single front ported, vinyl-wrapped MDF
- Dimensions: 274 x 382 x 329 mm (10.75 x 15 x 13")
- Weight: 13.6 kg (30 lb)
- Warranty: 5 years (2 + 3 with registration)
