Description

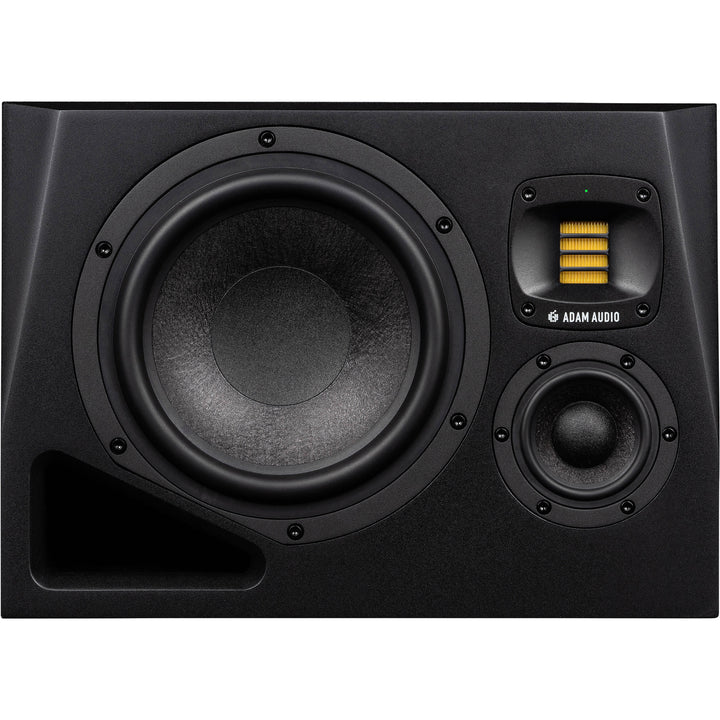

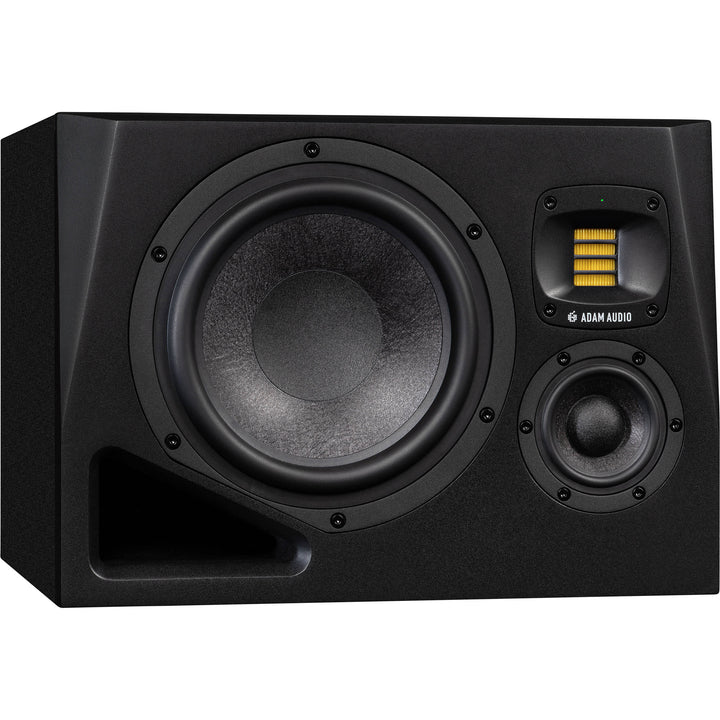

The ADAM Audio A8H (Left) is a 3-way horizontal midfield monitor with an 8" MLM woofer, dedicated MLM midrange driver, and handmade X-ART tweeter with HPS waveguide. The asymmetric cabinet design optimizes stereo imaging for the left channel position. Built for medium-to-large control rooms and critical listening environments where full-range accuracy and high SPL are essential.
Drivers & Amplification
- Woofer: 8" MLM cone
- Midrange: MLM driver
- Tweeter: X-ART folded ribbon with HPS waveguide (rotatable)
- Total amplifier power: 340W RMS (250W LF Class D + 70W MF Class A/B + 20W HF Class A/B)
DSP & Room Correction
Full A Series DSP platform with two factory voicings (UNR and Pure), four-band room adaptation EQ, and extended tuning via the free A Control software over Ethernet. Sonarworks SoundID Reference calibration profiles can be stored directly on the monitor's DSP.
Connectivity
- Analog input: XLR balanced
- Network: RJ45 Ethernet (OCA protocol)
- Power: 100-240V, 50/60 Hz (universal)
Specifications
- Configuration: Left channel (asymmetric cabinet)
- Frequency response: 32 Hz to 45 kHz (-6 dB)
- Crossover: 400 Hz, 3 kHz
- Cabinet: Single front ported, vinyl-wrapped MDF
- Dimensions: 274 x 382 x 329 mm (10.75 x 15 x 13")
- Weight: 13.6 kg (30 lb)
- Warranty: 5 years (2 + 3 with registration)
